Transportation Network Analysis with city2graph#

This notebook demonstrates the power of city2graph for processing and analyzing public transportation networks. We’ll use the General Transit Feed Specification (GTFS) data format to showcase how city2graph transforms complex transit schedules into intuitive graph representations suitable for:

Urban accessibility analysis - Understanding travel patterns and reachability
Network visualization - Creating compelling maps of transit flows
Graph neural networks - Converting transportation data into ML-ready formats
Spatial analysis - Examining the relationship between transit and urban morphology

The city2graph library simplifies the complex process of converting GTFS data into actionable insights, making transportation network analysis accessible to researchers, planners, and data scientists.

1. Environment Setup and Dependencies#

Before we dive into transportation analysis, let’s import the necessary libraries. city2graph integrates seamlessly with the geospatial Python ecosystem, building on familiar tools like GeoPandas, Shapely, and NetworkX.

[1]:

# Geospatial data processing
import geopandas as gpd
import networkx as nx

# Mapping and visualization
import contextily as ctx
import matplotlib.pyplot as plt
import matplotlib.lines as mlines

# Network analysis
import osmnx as ox

# The star of the show: city2graph for transportation network analysis
import city2graph

# Configure matplotlib for publication-quality visualizations
plt.rcParams['figure.figsize'] = (15, 12)
plt.rcParams['figure.dpi'] = 100
plt.style.use('default')  # Clean default style instead of ggplot

print("All dependencies loaded successfully!")
print(f"city2graph version: {city2graph.__version__ if hasattr(city2graph, '__version__') else 'development'}")

All dependencies loaded successfully!
city2graph version: 0.1.0

2. Loading GTFS Data with city2graph#

What is GTFS?#

The General Transit Feed Specification (GTFS) is the global standard for public transportation schedules and geographic information. GTFS data contains multiple interconnected tables describing:

Routes: Transit lines (bus routes, train lines, etc.)
Stops: Physical locations where passengers board/alight
Trips: Individual vehicle journeys along routes
Stop times: Scheduled arrival/departure times at each stop
Calendar: Service patterns (weekdays, weekends, holidays)

city2graph’s GTFS Advantage#

While GTFS data is powerful, it’s typically stored as separate CSV files that require complex joins and processing. city2graph simplifies this workflow by:

Automatic parsing of zipped GTFS files
Spatial integration - converting coordinates to proper GeoDataFrames
Data validation and type coercion for reliable analysis
Seamless integration with the Python geospatial stack with compatibility to GeoDataFrame, nx.MultiGraph, PyTorch Geometric Data(), etc.

Let’s see this in action with Transport for London data:

[2]:

from pathlib import Path
import city2graph

# Load GTFS data - city2graph handles all the complexity!
sample_gtfs_path = Path("./itm_london_gtfs.zip")

print("Loading London Transport GTFS data...")
print("This includes buses, trains, tubes, and trams across Greater London")

# One function call loads and processes the entire GTFS dataset
gtfs_data = city2graph.load_gtfs(sample_gtfs_path)

print(f"GTFS data loaded successfully!")
print(f"Found {len(gtfs_data)} data tables")
print(f"Total stops: {len(gtfs_data['stops']):,}")
print(f"Total routes: {len(gtfs_data['routes']):,}")
print(f"Total scheduled stop times: {len(gtfs_data['stop_times']):,}")

Loading London Transport GTFS data...
This includes buses, trains, tubes, and trams across Greater London
GTFS data loaded successfully!
Found 10 data tables
Total stops: 24,745
Total routes: 1,087
Total scheduled stop times: 17,807,603
GTFS data loaded successfully!
Found 10 data tables
Total stops: 24,745
Total routes: 1,087
Total scheduled stop times: 17,807,603

Understanding the GTFS Data Structure#

city2graph’s load_gtfs() function returns a dictionary where each key corresponds to a GTFS table. The stops table is automatically converted to a GeoDataFrame with proper spatial coordinates, making it immediately ready for geospatial analysis.

Let’s explore each component to understand how transit systems are structured:

calendar: This table provides the service schedules for the transit agency. It indicates the days of the week and dates when services are available.
trip: This table gives details about individual trips, including the route, service times, and other trip-specific information.
route: This table contains information about the routes that are part of the transit system, such as the route number and description.
stop_times: This table lists the times that vehicles stop at each stop on a trip, allowing for precise tracking of transit schedules.

Together, these components offer a comprehensive view of the transit system’s operations, enabling effective analysis and visualization.

[3]:

# Explore the structure of our GTFS data
print("Available GTFS tables:")
for i, table_name in enumerate(gtfs_data.keys(), 1):
    num_records = len(gtfs_data[table_name])
    print(f"  {i}. {table_name}: {num_records:,} records")

print("\n" + "="*50)
print("GTFS Table Descriptions:")
print("="*50)
print("agency      - Transit operators (TfL, etc.)")
print("calendar    - Service patterns (weekdays/weekends)")
print("routes      - Transit lines (Central Line, Bus 25, etc.)")
print("stops       - Physical stop locations (with coordinates)")
print("stop_times  - Scheduled arrivals/departures")
print("trips       - Individual vehicle journeys")
print("calendar_dates - Service exceptions (holidays, etc.)")

gtfs_data.keys()

Available GTFS tables:
  1. agency: 56 records
  2. stops: 24,745 records
  3. routes: 1,087 records
  4. calendar: 576 records
  5. calendar_dates: 40,264 records
  6. trips: 488,935 records
  7. shapes: 147,172 records
  8. frequencies: 61 records
  9. feed_info: 1 records
  10. stop_times: 17,807,603 records

==================================================
GTFS Table Descriptions:
==================================================
agency      - Transit operators (TfL, etc.)
calendar    - Service patterns (weekdays/weekends)
routes      - Transit lines (Central Line, Bus 25, etc.)
stops       - Physical stop locations (with coordinates)
stop_times  - Scheduled arrivals/departures
trips       - Individual vehicle journeys
calendar_dates - Service exceptions (holidays, etc.)

[3]:

dict_keys(['agency', 'stops', 'routes', 'calendar', 'calendar_dates', 'trips', 'shapes', 'frequencies', 'feed_info', 'stop_times'])

[4]:

# Agency information - Who operates the transit services?
print("Transit Agencies:")
print("This table contains information about transportation operators")
gtfs_data['agency'].head()

Transit Agencies:
This table contains information about transportation operators

[4]:

	agency_id	agency_name	agency_url	agency_timezone	agency_lang	agency_phone	agency_noc
0	OP11949	Golden Tours	https://www.traveline.info	Europe/London	EN	NaN	GTSL
1	OP14145	Quality Line	https://www.traveline.info	Europe/London	EN	NaN	QULN
2	OP14161	London Underground (TfL)	https://www.traveline.info	Europe/London	EN	NaN	LULD
3	OP14162	NATIONAL EXPRESS OPERAT	https://www.traveline.info	Europe/London	EN	NaN	SS
4	OP14163	London Docklands Light Railway - TfL	https://www.traveline.info	Europe/London	EN	NaN	LDLR

[5]:

gtfs_data['calendar'].head()

[5]:

	service_id	monday	tuesday	wednesday	thursday	friday	saturday	sunday	start_date	end_date
0	1	True	True	True	True	True	True	False	20250530	20260228
1	2	True	True	True	True	True	False	False	20250530	20260228
2	3	False	False	False	False	False	True	False	20250530	20260228
3	19	False	False	False	False	False	False	True	20250530	20260228
4	21	True	True	True	True	True	False	False	20250530	20260228

[6]:

gtfs_data['calendar_dates'].head()

[6]:

	service_id	date	exception_type
0	20458	20250903	1
1	31969	20251001	2
2	31438	20250711	2
3	20583	20251105	1
4	33097	20251201	1

[7]:

gtfs_data['routes'].head()

[7]:

	route_id	agency_id	route_short_name	route_long_name	route_type
0	58	OP5050	025	NaN	200
1	89	OP5050	444	NaN	200
2	100	OP5050	007	NaN	200
3	116	OP5050	022	NaN	200
4	289	OP53	372	NaN	3

[8]:

# Stops - The spatial foundation of transit networks
print("Transit Stops (with Spatial Coordinates):")
print("Notice how city2graph automatically creates a 'geometry' column")
print("This makes stops immediately ready for geospatial analysis")
print(f"Coordinate Reference System: {gtfs_data['stops'].crs}")
print(f"Geometry type: {gtfs_data['stops'].geometry.geom_type.iloc[0]}")

gtfs_data['stops'].head()

Transit Stops (with Spatial Coordinates):
Notice how city2graph automatically creates a 'geometry' column
This makes stops immediately ready for geospatial analysis
Coordinate Reference System: EPSG:4326
Geometry type: Point

[8]:

	stop_id	stop_code	stop_name	stop_lat	stop_lon	location_type	parent_station	platform_code	geometry
0	490014597S	48536	White Hart Ln Grt Cambridge Rd	51.60490	-0.085950	0	NaN	NaN	POINT (-0.08595 51.6049)
1	490007372S	74106	Granville Place	51.59650	-0.387280	0	NaN	NaN	POINT (-0.38728 51.5965)
2	490013521E	52358	The Ravensbury	51.39799	-0.157870	0	NaN	NaN	POINT (-0.15787 51.39799)
3	240G006160A	NaN	Bus Station	51.27127	0.193303	1	NaN	NaN	POINT (0.1933 51.27127)
4	490007476V	56036	Palmers Green / Green Lanes	51.61252	-0.107100	0	NaN	NaN	POINT (-0.1071 51.61252)

[9]:

gtfs_data['stop_times'].head()

[9]:

	trip_id	arrival_time	departure_time	stop_id	stop_sequence	stop_headsign	drop_off_type	shape_dist_traveled
0	VJ000015f02fdb2ffc0444ac5453798bd8befdca76	05:05:00	05:05:00	490006587C	1	NaN	0	NaN
1	VJ000015f02fdb2ffc0444ac5453798bd8befdca76	05:05:00	05:05:00	490009222A	0	NaN	1	NaN
2	VJ000015f02fdb2ffc0444ac5453798bd8befdca76	05:06:00	05:06:00	490006588R	2	NaN	0	NaN
3	VJ000015f02fdb2ffc0444ac5453798bd8befdca76	05:06:00	05:06:00	490009169S	3	NaN	0	NaN
4	VJ000015f02fdb2ffc0444ac5453798bd8befdca76	05:07:00	05:07:00	490004650S	5	NaN	0	NaN

[10]:

gtfs_data['trips'].head()

[10]:

	route_id	service_id	trip_id	trip_headsign	direction_id	block_id	shape_id	vehicle_journey_code
0	58	32443	VJ0b7453c953d79096488dd30c8d67da29644842ed	Brighton - Victoria, London	1	NaN	NaN	VJ99
1	58	32443	VJ0873eade6dfa11f222109beac2b7504007554ccd	Belgravia, Victoria - Brighton	0	NaN	NaN	VJ109
2	58	32443	VJ01dbdf44f6d74ff8027d089fb3db5ae022559673	Worthing - Victoria, London	1	NaN	NaN	VJ57
3	58	32445	VJ1218298147f26d820d17ed4344a4dc9dc5f24cb6	Brighton - Victoria, London	1	NaN	NaN	VJ29
4	58	32444	VJ18b4d838cbdac9a9ab9de1d2f0ca0426719ba0a8	Belgravia, Victoria - Brighton	0	NaN	NaN	VJ142

[11]:

# Visualize the spatial distribution of transit stops
print("Visualizing London's Transit Network")
print("Creating a map showing the spatial distribution of all transit stops...")

# city2graph automatically provides stops as a GeoDataFrame - no conversion needed!
stops_gdf = gtfs_data['stops']

# Reproject to British National Grid for accurate distance calculations
stops_gdf_bng = stops_gdf.to_crs(epsg=27700)

# Create a professional-looking map
fig, ax = plt.subplots(figsize=(15, 12))

# Plot stops with transparency for overlapping points
stops_gdf_bng.plot(
    ax=ax,
    alpha=0.6,
    color='#e74c3c',  # Transport red
    markersize=10,
    edgecolors='white',
    linewidth=0.1
)

# Add contextual basemap
ctx.add_basemap(
    ax,
    crs=stops_gdf_bng.crs.to_string(),
    source=ctx.providers.CartoDB.Positron,
    alpha=0.8
)

# Clean up the map appearance
ax.set_title("London Transit Network: Stop Locations", fontsize=16, fontweight='bold', pad=20)
ax.set_xlabel("")
ax.set_ylabel("")
ax.set_xticks([])
ax.set_yticks([])

# Add a subtle border
for spine in ax.spines.values():
    spine.set_visible(True)
    spine.set_linewidth(1)
    spine.set_color('#cccccc')

ax.set_aspect('equal')
plt.tight_layout()

print(f"Mapped {len(stops_gdf):,} transit stops across Greater London")
plt.show()

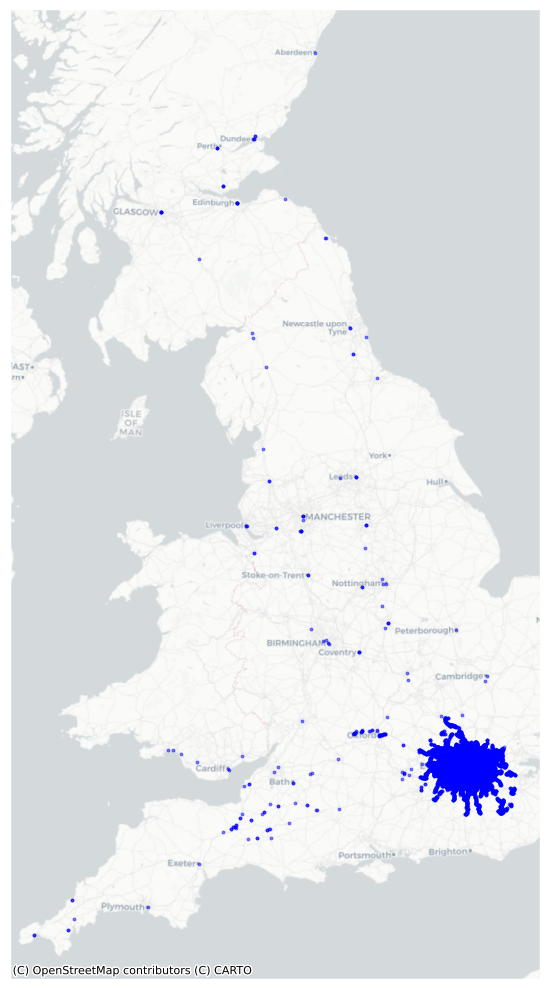

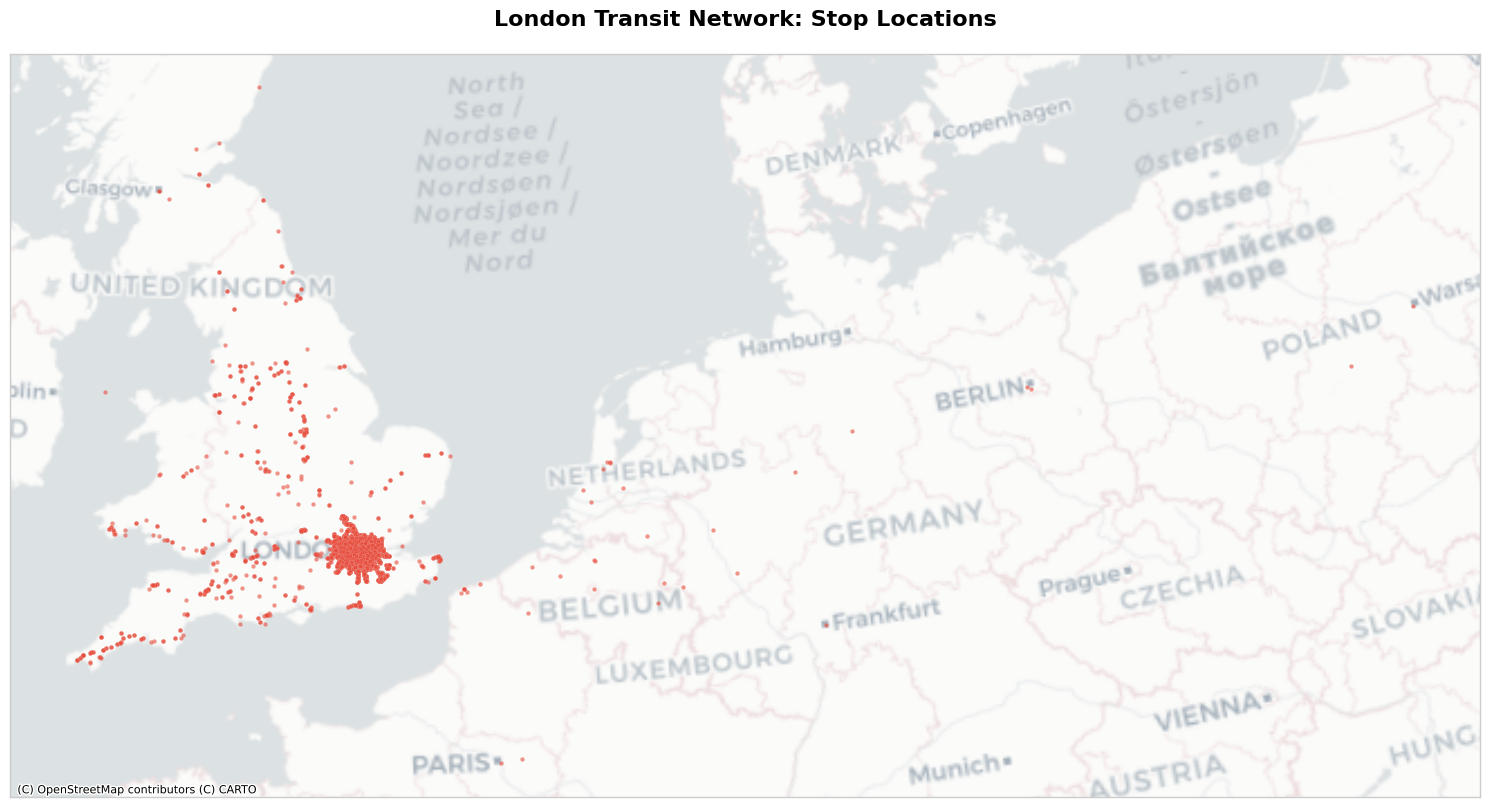

Visualizing London's Transit Network
Creating a map showing the spatial distribution of all transit stops...
Mapped 24,745 transit stops across Greater London
Mapped 24,745 transit stops across Greater London

3. Creating Transit Graphs with city2graph#

The Power of Graph Representation#

Raw GTFS data contains thousands of individual trips and stop times, but what we really want to understand are the connections and flow patterns in the network. This is where city2graph shines - it transforms complex scheduling data into clean graph representations.

After loading the GTFS, travel_summary_network can summarise the trips between stops. The output contains the origin and destination of stops, with average travel times in seconds and frequency in the specified time intervals.

travel_summary_graph: From Schedules to Networks#

The travel_summary_graph() function is city2graph’s flagship feature for transportation analysis. It performs sophisticated aggregation:

What it does:

Processes thousands of individual trips into meaningful connections between stops
Calculates average travel times between consecutive stops
Counts service frequency (how often services run between stop pairs)
Creates spatial geometries for each connection
Handles complex scheduling including service calendars and time-of-day filtering

Why this matters:

Transforms scheduling complexity into simple origin-destination relationships
Enables network analysis (shortest paths, centrality, accessibility)
Perfect input for graph neural networks and machine learning
Ready-to-use format for visualization and spatial analysis

Let’s see this powerful transformation in action:

[12]:

# Transform GTFS schedules into a travel network graph
print("Converting GTFS schedules to network representation...")
print("This processes thousands of trips into clean origin-destination relationships")

# The magic happens here - one function call does all the heavy lifting!
travel_summary_nodes, travel_summary_edges = city2graph.travel_summary_graph(
    gtfs_data,
    calendar_start="20250601",  # Analyze services for June 1, 2025
    calendar_end="20250601"     # Single day analysis for demonstration
)

print("Network analysis complete!")
print(f"Created graph with:")
print(f"   • {len(travel_summary_nodes):,} nodes (stops with connections)")
print(f"   • {len(travel_summary_edges):,} edges (stop-to-stop connections)")
print(f"   • Each edge contains travel time and frequency data")

print("\nWhat city2graph calculated:")
print("   • Average travel time between each pair of connected stops")
print("   • Service frequency (trips per day) for each connection")
print("   • Spatial geometry for mapping and analysis")
print("   • Only includes stops that actually have transit service")

Converting GTFS schedules to network representation...
This processes thousands of trips into clean origin-destination relationships
Network analysis complete!
Created graph with:
   • 24,745 nodes (stops with connections)
   • 28,133 edges (stop-to-stop connections)
   • Each edge contains travel time and frequency data

What city2graph calculated:
   • Average travel time between each pair of connected stops
   • Service frequency (trips per day) for each connection
   • Spatial geometry for mapping and analysis
   • Only includes stops that actually have transit service
Network analysis complete!
Created graph with:
   • 24,745 nodes (stops with connections)
   • 28,133 edges (stop-to-stop connections)
   • Each edge contains travel time and frequency data

What city2graph calculated:
   • Average travel time between each pair of connected stops
   • Service frequency (trips per day) for each connection
   • Spatial geometry for mapping and analysis
   • Only includes stops that actually have transit service

[13]:

# Examine the nodes (stops) in our travel network
print("Network Nodes (Transit Stops):")
print("These are stops that have active transit connections")
print("Notice: Only stops with actual service are included in the network")

travel_summary_nodes.head()

Network Nodes (Transit Stops):
These are stops that have active transit connections
Notice: Only stops with actual service are included in the network

[13]:

	stop_code	stop_name	stop_lat	stop_lon	wheelchair_boarding	location_type	parent_station	platform_code	geometry
stop_id
490014597S	48536	White Hart Ln Grt Cambridge Rd	51.60490	-0.085950	0	0	NaN	NaN	POINT (-0.08595 51.6049)
490007372S	74106	Granville Place	51.59650	-0.387280	0	0	NaN	NaN	POINT (-0.38728 51.5965)
490013521E	52358	The Ravensbury	51.39799	-0.157870	0	0	NaN	NaN	POINT (-0.15787 51.39799)
240G006160A	NaN	Bus Station	51.27127	0.193303	0	1	NaN	NaN	POINT (0.1933 51.27127)
490007476V	56036	Palmers Green / Green Lanes	51.61252	-0.107100	0	0	NaN	NaN	POINT (-0.1071 51.61252)

[14]:

# Examine the edges (connections) in our travel network
print("Network Edges (Transit Connections):")
print("Each row represents a direct connection between two stops")
print("\nKey metrics city2graph calculated:")
print("   • mean_travel_time: Average time to travel between stops (seconds)")
print("   • frequency: Number of services per day on this connection")
print("   • geometry: LineString for mapping and spatial analysis")

print(f"\nPerformance insight:")
print(f"   Fastest connection: {travel_summary_edges['mean_travel_time'].min():.0f} seconds")
print(f"   Busiest connection: {travel_summary_edges['frequency'].max():.0f} services/day")
print(f"   Average travel time: {travel_summary_edges['mean_travel_time'].mean():.0f} seconds")

travel_summary_edges.head()

Network Edges (Transit Connections):
Each row represents a direct connection between two stops

Key metrics city2graph calculated:
   • mean_travel_time: Average time to travel between stops (seconds)
   • frequency: Number of services per day on this connection
   • geometry: LineString for mapping and spatial analysis

Performance insight:
   Fastest connection: 1 seconds
   Busiest connection: 999 services/day
   Average travel time: 436 seconds

[14]:

		mean_travel_time	frequency	geometry
from_stop_id	to_stop_id
01000053216	0170SGP90689	830.303030	99.0	LINESTRING (-2.59298 51.45906, -2.54498 51.50353)
	0190NSZ01231	2700.000000	8.0	LINESTRING (-2.59298 51.45906, -2.90907 51.36196)
	035059860001	5541.176471	17.0	LINESTRING (-2.59298 51.45906, -0.98026 51.40611)
	1100DEA57098	6600.000000	6.0	LINESTRING (-2.59298 51.45906, -3.52313 50.72689)
	360000174	3710.000000	30.0	LINESTRING (-2.59298 51.45906, -3.06586 51.01774)

[15]:

# Focus analysis on Greater London area using spatial filtering
print("Applying spatial filter to focus on Greater London...")
print("This demonstrates city2graph's seamless integration with geospatial analysis")

# Get London boundary using OSMnx
london_boundary = ox.geocode_to_gdf("Greater London, UK").to_crs(epsg=27700)

# Project our network data to British National Grid for accurate spatial operations
travel_summary_nodes = travel_summary_nodes.to_crs(epsg=27700)
travel_summary_edges = travel_summary_edges.to_crs(epsg=27700)

# Spatial join to filter data within London boundary
print("Filtering nodes and edges within London boundary...")
nodes_in_bound = gpd.sjoin(travel_summary_nodes, london_boundary, how="inner").drop(columns=['index_right'])
edges_in_bound = gpd.sjoin(travel_summary_edges, london_boundary, how="inner").drop(columns=['index_right'])

# Update variables and ensure edge consistency
travel_summary_nodes = nodes_in_bound
travel_summary_edges = edges_in_bound

# Keep only edges where both endpoints are in our filtered node set
travel_summary_edges = travel_summary_edges[
    travel_summary_edges.index.get_level_values('from_stop_id').isin(travel_summary_nodes.index) &
    travel_summary_edges.index.get_level_values('to_stop_id').isin(travel_summary_nodes.index)
]

print(f"Spatial filtering complete:")
print(f"   Nodes within London: {len(travel_summary_nodes):,}")
print(f"   Edges within London: {len(travel_summary_edges):,}")
print(f"   Data reduced by {((1 - len(travel_summary_nodes)/len(nodes_in_bound)) * 100):.1f}% for focused analysis")

Applying spatial filter to focus on Greater London...
This demonstrates city2graph's seamless integration with geospatial analysis
Filtering nodes and edges within London boundary...
Spatial filtering complete:
   Nodes within London: 20,220
   Edges within London: 25,182
   Data reduced by 0.0% for focused analysis
Spatial filtering complete:
   Nodes within London: 20,220
   Edges within London: 25,182
   Data reduced by 0.0% for focused analysis

[16]:

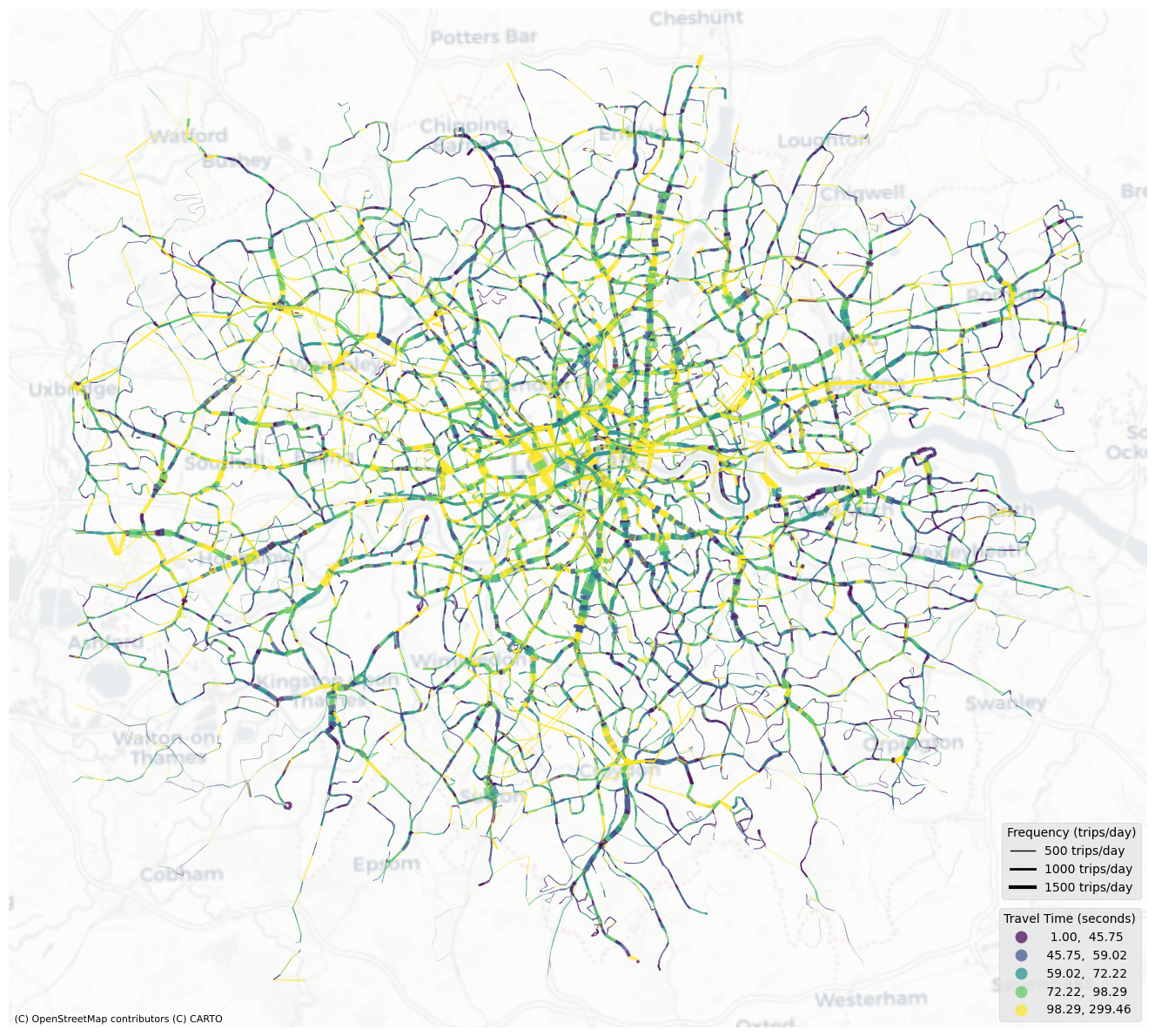

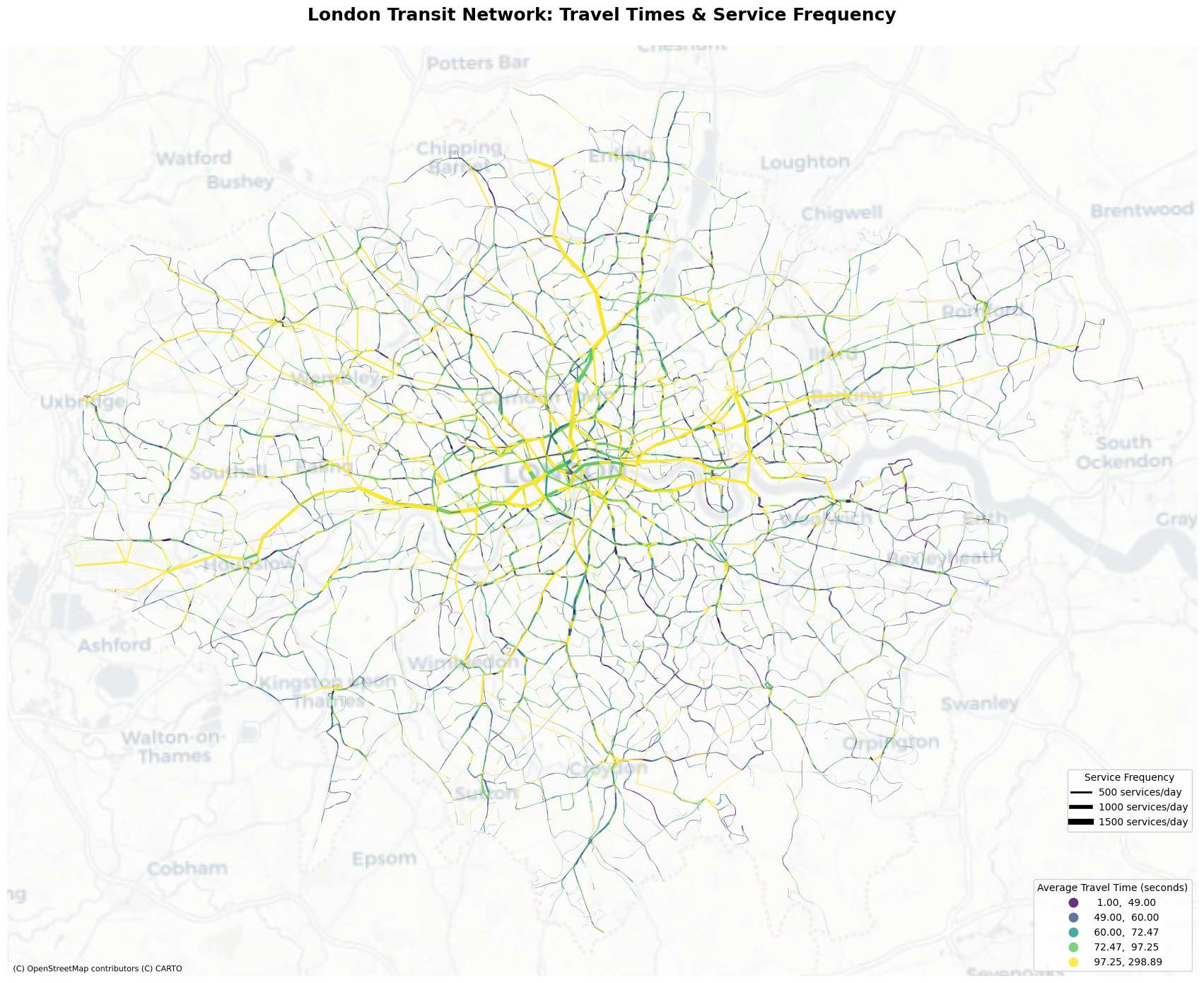

# Create a sophisticated network visualization
print("Creating advanced network visualization...")
print("This map shows the power of city2graph's transit network representation")

# Filter for reasonable travel times and prepare for visualization
edges_for_viz = edges_in_bound[edges_in_bound["mean_travel_time"] < 300]  # Under 5 minutes
edges_cropped = gpd.sjoin(
    edges_for_viz,
    london_boundary,
    how="inner",
    predicate="within"
)

print(f"Visualizing {len(edges_cropped):,} transit connections")
print("Features:")
print("   • Line color: Travel time (darker = faster)")
print("   • Line width: Service frequency (thicker = more frequent)")
print("   • Geographic accuracy: Projected coordinate system")

# Set up the visualization
cmap = plt.cm.viridis
fig, ax = plt.subplots(figsize=(18, 14))

# Plot the network with dual encoding (color + width)
edges_cropped.plot(
    column="mean_travel_time",
    cmap=cmap,
    scheme="quantiles",
    k=5,
    linewidth=edges_cropped['frequency'] / 250,  # Frequency determines line width
    alpha=0.8,
    ax=ax,
    legend=True,
    legend_kwds={'title': 'Average Travel Time (seconds)', 'loc': 'lower right'}
)

# Customize the travel time legend
travel_time_legend = ax.get_legend()
travel_time_legend.set_bbox_to_anchor((1, 0))
travel_time_legend.set_loc('lower right')

# Add frequency legend
freq_values = [500, 1000, 1500]
freq_legend_elements = [
    mlines.Line2D([0], [0], color='black', linewidth=f/250, label=f'{f} services/day')
    for f in freq_values
]
freq_legend = ax.legend(
    handles=freq_legend_elements,
    title="Service Frequency",
    loc="lower right",
    bbox_to_anchor=(1, 0.15),
    frameon=True,
    framealpha=0.9
)
ax.add_artist(travel_time_legend)

# Add basemap for context
ctx.add_basemap(
    ax,
    crs=edges_cropped.crs.to_string(),
    source=ctx.providers.CartoDB.Positron,
    alpha=0.5
)

# Professional styling
ax.set_title("London Transit Network: Travel Times & Service Frequency",
             fontsize=18, fontweight='bold', pad=25)
ax.set_xlabel("")
ax.set_ylabel("")
ax.set_xticks([])
ax.set_yticks([])

# Clean border
for spine in ax.spines.values():
    spine.set_visible(True)
    spine.set_linewidth(1.5)
    spine.set_color('#333333')

ax.set_aspect("equal")
ax.set_axis_off()
plt.tight_layout()

print("Network visualization complete!")
print("Insights visible:")
print("   • High-frequency corridors (thick lines)")
print("   • Fast connections (dark lines)")
print("   • Network density patterns across London")

plt.show()

Creating advanced network visualization...
This map shows the power of city2graph's transit network representation
Visualizing 20,600 transit connections
Features:
   • Line color: Travel time (darker = faster)
   • Line width: Service frequency (thicker = more frequent)
   • Geographic accuracy: Projected coordinate system
Network visualization complete!
Insights visible:
   • High-frequency corridors (thick lines)
   • Fast connections (dark lines)
   • Network density patterns across London
Network visualization complete!
Insights visible:
   • High-frequency corridors (thick lines)
   • Fast connections (dark lines)
   • Network density patterns across London

4. Further Network Analysis with city2graph#

Converting to NetworkX for Graph Algorithms#

city2graph seamlessly bridges the gap between geospatial data and network analysis. The gdf_to_nx() function converts our GeoDataFrames into NetworkX graphs, enabling powerful graph algorithms while preserving all spatial and transit-specific attributes.

[17]:

# Convert to NetworkX graph for advanced network analysis
print("Converting to NetworkX for graph algorithms...")
travel_graph = city2graph.gdf_to_nx(travel_summary_nodes, travel_summary_edges)

print(f"NetworkX graph created:")
print(f"   • Nodes: {travel_graph.number_of_nodes():,}")
print(f"   • Edges: {travel_graph.number_of_edges():,}")
print(f"   • Graph type: {type(travel_graph).__name__}")

# Demonstrate city2graph's spatial filtering capabilities
print("\nApplying distance-based filtering...")
print("This showcases accessibility analysis - what's reachable within a distance?")

# Filter graph to show network within 1.2km of central London
central_london = london_boundary.geometry.iloc[0].centroid
filtered_travel_graph = city2graph.filter_graph_by_distance(
    travel_graph,
    center_point=central_london,
    distance=1200,  # 1.2 km radius
    edge_attr="mean_travel_time"  # Filter by travel time, not physical distance
)

print(f"Filtered network (1.2km from center):")
print(f"   • Nodes: {filtered_travel_graph.number_of_nodes():,}")
print(f"   • Edges: {filtered_travel_graph.number_of_edges():,}")
print(f"   • Reduction: {(1 - filtered_travel_graph.number_of_nodes()/travel_graph.number_of_nodes())*100:.1f}%")

# Convert back to GeoDataFrames for visualization
filtered_travel_nodes, filtered_travel_edges = city2graph.nx_to_gdf(filtered_travel_graph)

print("Ready for focused network analysis and visualization!")

Removed 3 invalid geometries

Converting to NetworkX for graph algorithms...
NetworkX graph created:
   • Nodes: 20,220
   • Edges: 25,139
   • Graph type: Graph

Applying distance-based filtering...
This showcases accessibility analysis - what's reachable within a distance?
Filtered network (1.2km from center):
   • Nodes: 714
   • Edges: 959
   • Reduction: 96.5%
Ready for focused network analysis and visualization!
NetworkX graph created:
   • Nodes: 20,220
   • Edges: 25,139
   • Graph type: Graph

Applying distance-based filtering...
This showcases accessibility analysis - what's reachable within a distance?
Filtered network (1.2km from center):
   • Nodes: 714
   • Edges: 959
   • Reduction: 96.5%
Ready for focused network analysis and visualization!

[18]:

# Create a detailed view of central London's transit network
print("Creating focused network visualization for central London...")
print("This demonstrates city2graph's ability to combine spatial and network analysis")

# Set up the focused visualization
cmap = plt.cm.plasma
fig, ax = plt.subplots(figsize=(16, 16))

# Plot edges with enhanced styling
filtered_travel_edges.plot(
    column="mean_travel_time",
    cmap=cmap,
    scheme="quantiles",
    k=5,
    linewidth=filtered_travel_edges['frequency'] / 200,  # Adjusted for better visibility
    alpha=0.9,
    ax=ax,
    legend=True,
    legend_kwds={'title': 'Average Travel Time (seconds)', 'loc': 'upper right'}
)

# Highlight stops as network nodes
filtered_travel_nodes.plot(
    ax=ax,
    color='#ff6b6b',  # Bright red for visibility
    markersize=40,
    alpha=0.8,
    zorder=3
)

# Customize legends
travel_time_legend = ax.get_legend()
travel_time_legend.set_bbox_to_anchor((1, 1))
travel_time_legend.set_loc('upper right')

# Service frequency legend
freq_values = [300, 600, 900]
freq_legend_elements = [
    mlines.Line2D([0], [0], color='black', linewidth=f/200, label=f'{f} services/day')
    for f in freq_values
]
freq_legend = ax.legend(
    handles=freq_legend_elements,
    title="Service Frequency",
    loc="upper right",
    bbox_to_anchor=(1, 0.8),
    frameon=True,
    framealpha=0.9
)
ax.add_artist(travel_time_legend)

# Add basemap for geographic context
ctx.add_basemap(
    ax,
    crs=edges_cropped.crs.to_string(),
    source=ctx.providers.CartoDB.Positron,
    alpha=0.5
)

# Professional styling

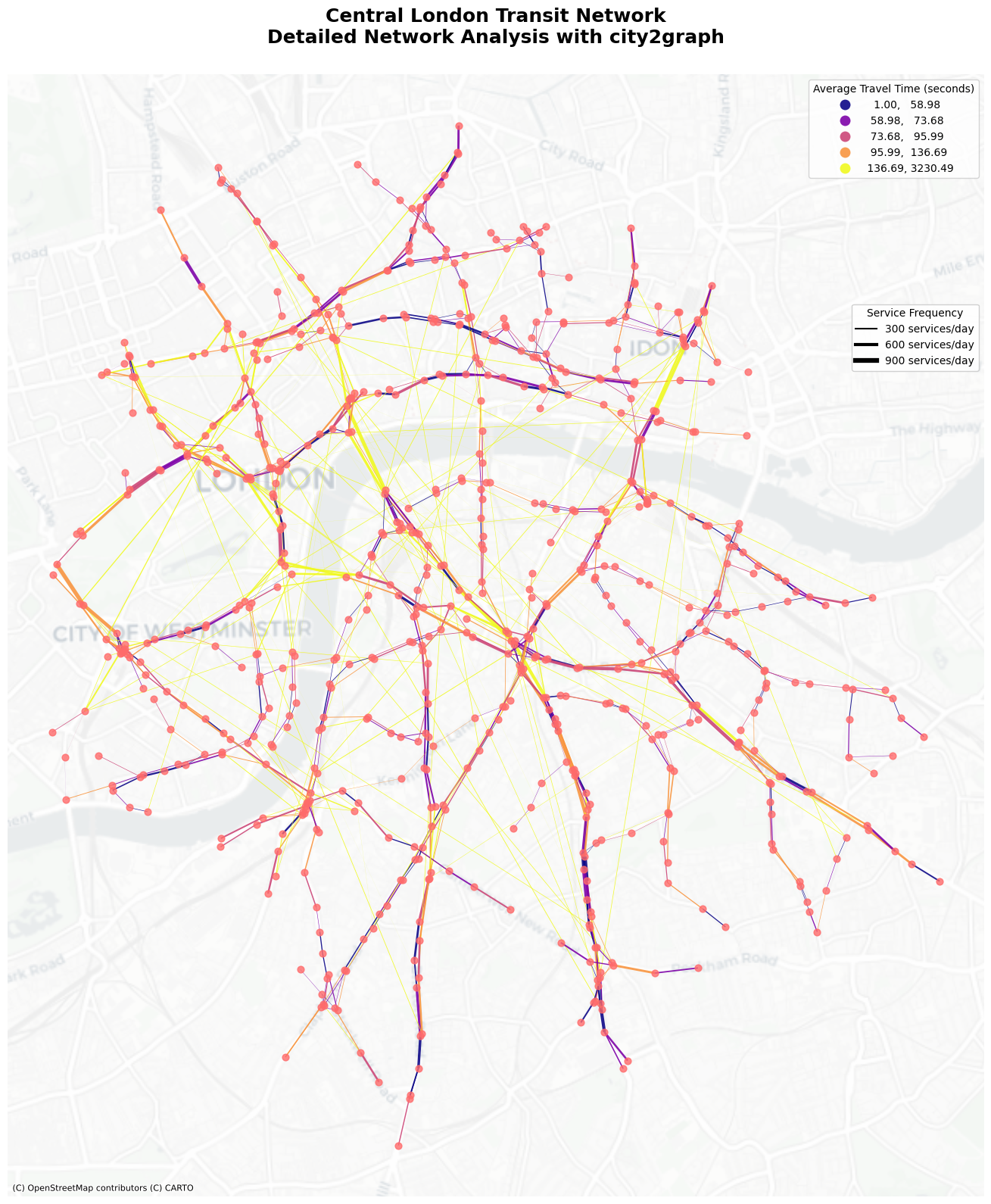

ax.set_title("Central London Transit Network\nDetailed Network Analysis with city2graph",
             fontsize=18, fontweight='bold', pad=30)
ax.set_xlabel("")
ax.set_ylabel("")
ax.set_xticks([])
ax.set_yticks([])

# Clean border
for spine in ax.spines.values():
    spine.set_visible(True)
    spine.set_linewidth(2)
    spine.set_color('#2c3e50')

ax.set_aspect("equal")
ax.set_axis_off()
plt.tight_layout()

print("Detailed network analysis complete!")
print(f"Focused analysis shows:")
print(f"   • {len(filtered_travel_nodes):,} transit stops")
print(f"   • {len(filtered_travel_edges):,} direct connections")
print(f"   • Network connectivity patterns in central London")
print(f"   • Service frequency and travel time relationships")

plt.show()

Creating focused network visualization for central London...
This demonstrates city2graph's ability to combine spatial and network analysis
Detailed network analysis complete!
Focused analysis shows:
   • 714 transit stops
   • 959 direct connections
   • Network connectivity patterns in central London
   • Service frequency and travel time relationships
Detailed network analysis complete!
Focused analysis shows:
   • 714 transit stops
   • 959 direct connections
   • Network connectivity patterns in central London
   • Service frequency and travel time relationships

[19]:

# Calculate betweenness centrality for the filtered_travel_graph
betweenness = nx.betweenness_centrality(filtered_travel_graph, weight='mean_travel_time', normalized=True)

nx.set_node_attributes(filtered_travel_graph, betweenness, "betweenness_centrality")

[20]:

filtered_travel_nodes, filtered_travel_edges = city2graph.nx_to_gdf(filtered_travel_graph)

[21]:

# Create a detailed view of central London's transit network
print("Creating focused network visualization for central London...")
print("This demonstrates city2graph's ability to combine spatial and network analysis")

fig, ax = plt.subplots(figsize=(16, 16))

# Plot edges in a neutral color (no color encoding)
filtered_travel_edges.plot(
    ax=ax,
    color="#bbbbbb",
    linewidth=filtered_travel_edges['frequency'] / 200,
    alpha=0.7,
    zorder=1
)

# Plot nodes colored by betweenness centrality, with horizontal colorbar at the bottom
filtered_travel_nodes.plot(
    ax=ax,
    column="betweenness_centrality",
    cmap="plasma",
    markersize=40,
    alpha=0.9,
    legend=True,
    legend_kwds={
        'orientation': 'horizontal',
        'shrink': 0.7,
        'pad': 0.04,
        'label': 'Betweenness Centrality'
    },
    zorder=2
)

# Service frequency legend for edges
freq_values = [300, 600, 900]
freq_legend_elements = [
    mlines.Line2D([0], [0], color='black', linewidth=f/200, label=f'{f} services/day')
    for f in freq_values
]
freq_legend = ax.legend(
    handles=freq_legend_elements,
    title="Service Frequency",
    loc="upper right",
    bbox_to_anchor=(1, 0.8),
    frameon=True,
    framealpha=0.9
)

# Add basemap for geographic context
ctx.add_basemap(
    ax,
    crs=filtered_travel_edges.crs.to_string(),
    source=ctx.providers.CartoDB.Positron,
    alpha=0.5
)

# Professional styling

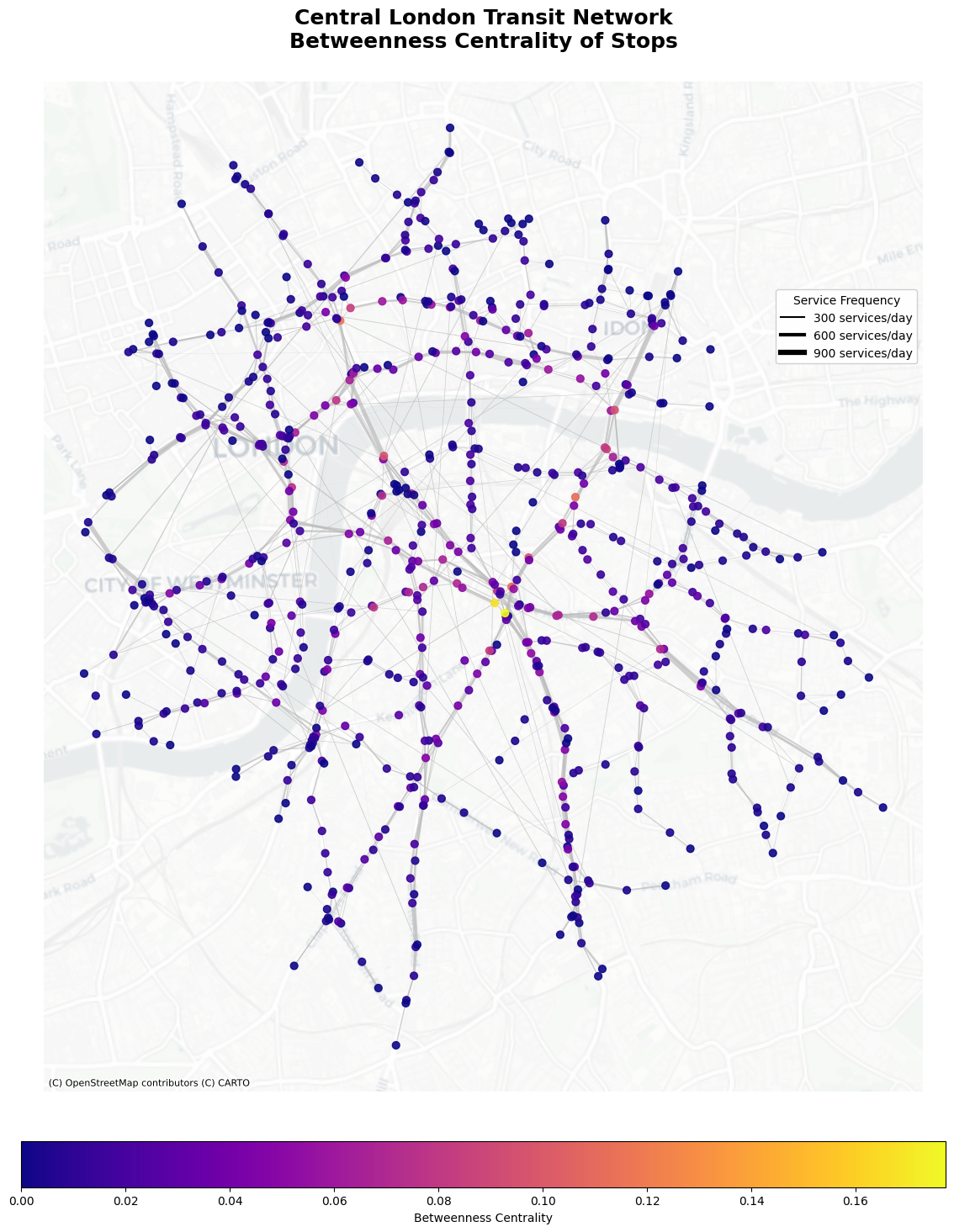

ax.set_title("Central London Transit Network\nBetweenness Centrality of Stops",
             fontsize=18, fontweight='bold', pad=30)
ax.set_xlabel("")
ax.set_ylabel("")
ax.set_xticks([])
ax.set_yticks([])

# Clean border
for spine in ax.spines.values():
    spine.set_visible(True)
    spine.set_linewidth(2)
    spine.set_color('#2c3e50')

ax.set_aspect("equal")
ax.set_axis_off()
plt.tight_layout()

print("Detailed network analysis complete!")
print(f"Focused analysis shows:")
print(f"   • {len(filtered_travel_nodes):,} transit stops")
print(f"   • {len(filtered_travel_edges):,} direct connections")
print(f"   • Node color = betweenness centrality")
print(f"   • Edge width = service frequency")

plt.show()

Creating focused network visualization for central London...
This demonstrates city2graph's ability to combine spatial and network analysis
Detailed network analysis complete!
Focused analysis shows:
   • 714 transit stops
   • 959 direct connections
   • Node color = betweenness centrality
   • Edge width = service frequency

[ ]:
