Morphological Graph from Overture Maps with city2graph

This notebook demonstrates how to create morphological graph using city2graph and data from Overture Maps. Morphological graph provide a comprehensive graph representation of urban form that captures the relationships between public and private spaces in cities.

What are Morphological Graphs?

Morphological graphs are heterogeneous graphs where:

• Nodes represent both public spaces (street segments) and private spaces (enclosed areas/tessellations)

• Edges capture three types of spatial relationships:

  • 🔴 Private-to-private: Adjacency between neighboring private spaces

  • 🔵 Public-to-public: Connectivity along street networks (dual graph representation)

  • 🟣 Private-to-public: Interface between private spaces and adjacent streets

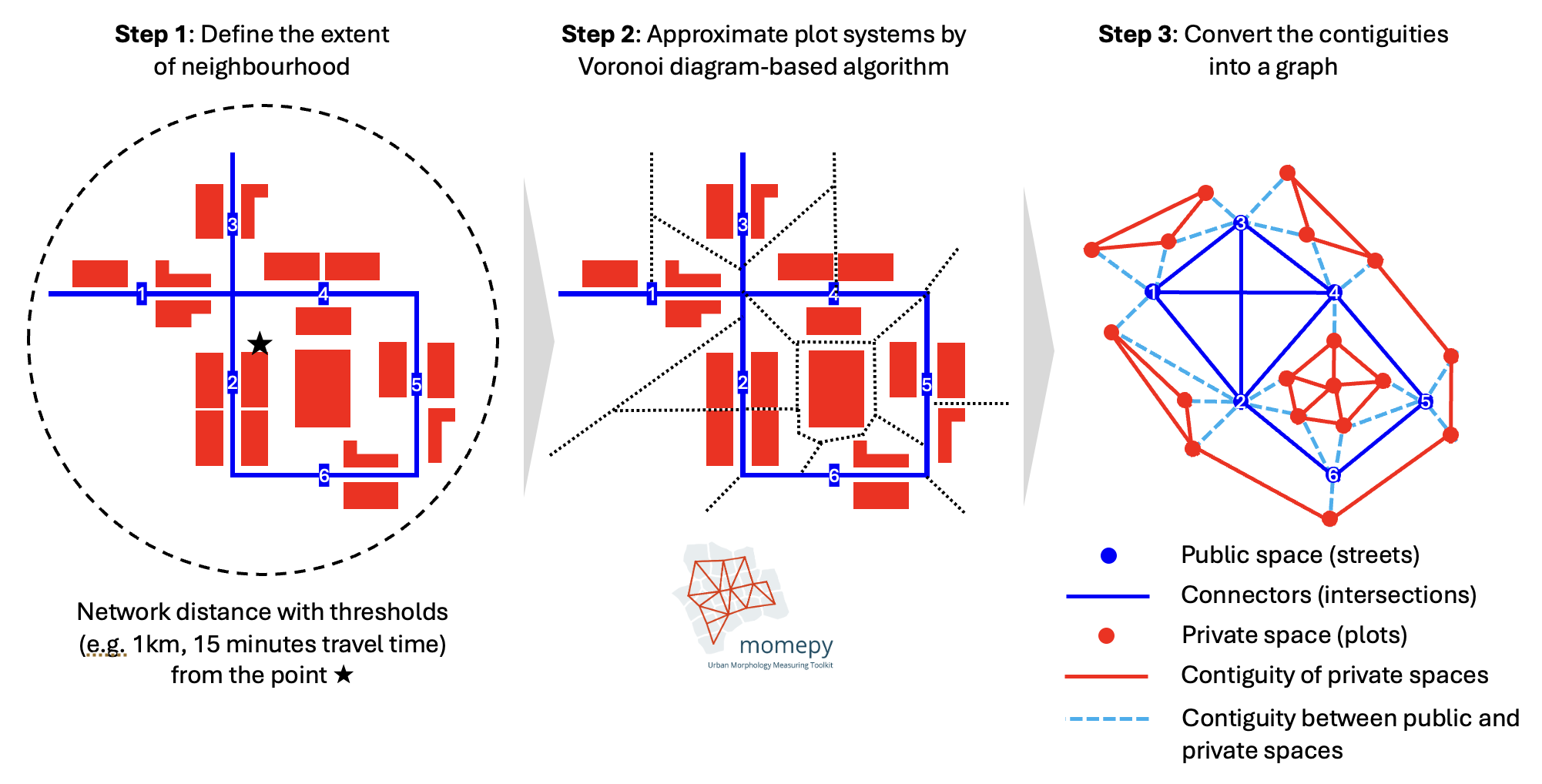

Workflow Overview

1. Data Loading: Import building footprints and street segments from Overture Maps

2. Data Processing: Clean and prepare spatial data for network creation

3. Morphological Graph Generation: Create tessellations and extract spatial relationships

4. Graph Conversion: Convert to PyTorch Geometric for machine learning applications

5. Visualization: Explore the resulting morphological graph

This approach enables advanced urban analytics including connectivity analysis, accessibility studies, and graph-based machine learning for urban form analysis.

1. Setup and Dependencies

# Core libraries
import numpy as np
import geopandas as gpd
import matplotlib.pyplot as plt
import contextily as cx
from shapely import Point

# city2graph for morphological graph analysis
import city2graph

# Configure matplotlib for high-quality visualizations
plt.rcParams['figure.figsize'] = (14, 10)
plt.rcParams['figure.dpi'] = 100
plt.rcParams['font.size'] = 11
plt.style.use('ggplot')

print("✅ Dependencies loaded successfully")
print(f"city2graph version: {city2graph.__version__}")
print(f"geopandas version: {gpd.__version__}")

✅ Dependencies loaded successfully
city2graph version: 0.1.1
geopandas version: 1.0.1

2. Loading Data from Overture Maps

We’ll work with real urban data from Liverpool, UK, using Overture Maps which provides high-quality, open geospatial data including:

• Building footprints: Representing private/built spaces

• Road segments: Representing the street network

• Connectors: Intersection points in the road network

The data covers Liverpool city centre and demonstrates how city2graph can process real-world urban environments.

# Download data from Overture Maps (uncomment to download fresh data)
# This downloads building footprints, road segments, and connectors for Liverpool city centre

bbox = [-3.090173, 53.355487, -2.917138, 53.465587]  # Liverpool city centre bounding box

city2graph.load_overture_data(
    area=bbox,
    types=["segment", "building", "connector"],
    output_dir=".",
    prefix="liverpool_",
    save_to_file=True,
    return_data=False
)

print("Data loading configuration complete")
print("To download fresh data, uncomment the city2graph.load_overture_data() call above")

Data loading configuration complete
To download fresh data, uncomment the city2graph.load_overture_data() call above

# Load the downloaded GeoJSON files
buildings_gdf = gpd.read_file("liverpool_building.geojson")
segments_gdf = gpd.read_file("liverpool_segment.geojson")
connectors_gdf = gpd.read_file("liverpool_connector.geojson")

# Convert to British National Grid (EPSG:27700) for accurate distance calculations
buildings_gdf = buildings_gdf.to_crs(epsg=27700)
segments_gdf = segments_gdf.to_crs(epsg=27700)
connectors_gdf = connectors_gdf.to_crs(epsg=27700)

print("✅ Data loaded successfully!")
print(f"📊 Dataset summary:")
print(f"   • Buildings: {len(buildings_gdf):,}")
print(f"   • Road segments: {len(segments_gdf):,}")
print(f"   • Connectors: {len(connectors_gdf):,}")
print(f"   • CRS: {buildings_gdf.crs}")

✅ Data loaded successfully!
📊 Dataset summary:
   • Buildings: 131,680
   • Road segments: 37,891
   • Connectors: 47,699
   • CRS: EPSG:27700

3. Street Network Processing

Before creating morphological graphs, we need to process the raw street data. This involves:

1. Filtering: Keep only road segments (exclude pedestrian paths, railways, etc.)

2. Barrier Processing: Handle bridges and tunnels to create accurate spatial barriers

3. Network Cleanup: Ensure proper connectivity for graph operations

The barrier_geometry column will contain the processed geometries that act as spatial barriers for tessellation.

# Filter to keep only road segments (excluding pedestrian paths, railways, etc.)
segments_gdf = segments_gdf[segments_gdf["subtype"] == "road"].copy()

# Process segments to handle bridges/tunnels and create proper spatial barriers
segments_gdf = city2graph.process_overture_segments(
    segments_gdf=segments_gdf,
    get_barriers=True,
    connectors_gdf=connectors_gdf
)

print(f"✅ Processed {len(segments_gdf)} road segments")
print(f"📈 Barrier geometries created for tessellation")

# Check the geometry types in the barrier_geometry column
geometry_types = segments_gdf["barrier_geometry"].geom_type.value_counts()
print(f"\n🔍 Barrier geometry types:")
for geom_type, count in geometry_types.items():
    print(f"   • {geom_type}: {count:,}")

✅ Processed 62577 road segments
📈 Barrier geometries created for tessellation

🔍 Barrier geometry types:
   • LineString: 61,635
   • MultiLineString: 526

4. Creating Morphological Graphs

Now we’ll create the morphological graph - the core contribution of city2graph. This process:

The Process:

1. Tessellation Creation: Divide space into private areas using street segments as barriers

2. Network Extraction: Identify three types of spatial relationships:

   • Private-to-private (red): Adjacency between neighboring private spaces

   • Public-to-public (blue): Connectivity along street networks

   • Private-to-public (purple): Interface between private spaces and streets

Why Morphological Graphs?

Unlike traditional approaches that analyze street networks and buildings separately, morphological graphs provide a unified representation of urban space that:

• Captures the complete topology of public and private spaces

• Enables holistic urban analysis combining street accessibility and land use

• Provides a foundation for spatially-explicit graph machine learning

• Supports integration of diverse urban attributes (POIs, demographics, functions)

# Define center point for the analysis area (Liverpool city centre)
center_point = gpd.GeoSeries([Point(-2.9879004, 53.4062724)], crs='EPSG:4326').to_crs(epsg=27700)

# Create the morphological graph
print("🏗️  Creating morphological graph...")
morpho_nodes, morpho_edges = city2graph.morphological_graph(
    buildings_gdf=buildings_gdf,
    segments_gdf=segments_gdf,
    center_point=center_point,
    distance=500,                    # Analysis radius in meters
    clipping_buffer=300,            # Buffer for edge effects
    primary_barrier_col='barrier_geometry',
    contiguity="queen",             # Adjacency rule for tessellation
    keep_buildings=True,            # Preserve building geometries
)

print("✅ Morphological graph created successfully!")
print(f"📊 Network summary:")
print(f"   • Node types: {list(morpho_nodes.keys())}")
print(f"   • Edge types: {list(morpho_edges.keys())}")
print(f"   • Private spaces: {len(morpho_nodes['private']):,}")
print(f"   • Public spaces: {len(morpho_nodes['public']):,}")

for edge_type, edge_gdf in morpho_edges.items():
    print(f"   • {edge_type}: {len(edge_gdf):,} connections")

Removed 8 invalid geometries

🏗️  Creating morphological graph...

/Users/yutasato/Projects/Liverpool/city2graph/.venv/lib/python3.13/site-packages/libpysal/weights/contiguity.py:347: UserWarning: The weights matrix is not fully connected:
 There are 3 disconnected components.
  W.__init__(self, neighbors, ids=ids, **kw)

✅ Morphological graph created successfully!
📊 Network summary:
   • Node types: ['private', 'public']
   • Edge types: [('private', 'touched_to', 'private'), ('public', 'connected_to', 'public'), ('private', 'faced_to', 'public')]
   • Private spaces: 1,342
   • Public spaces: 781
   • ('private', 'touched_to', 'private'): 625 connections
   • ('public', 'connected_to', 'public'): 1,432 connections
   • ('private', 'faced_to', 'public'): 2,448 connections

morpho_nodes["private"].head()

	geometry	enclosure_index	id	version	sources	level	subtype	class	height	names	...	num_floors_underground	facade_color	facade_material	roof_material	roof_shape	roof_direction	roof_orientation	roof_color	roof_height	building_geometry
private_id
0_73269	POLYGON ((333996.175 390450.527, 334003.086 39...	0	b1ad14ae-8c81-4ce8-8454-161b6f353e79	1.0	[ { "property": "", "dataset": "OpenStreetMap"...	NaN	None	None	28.712467	None	...	NaN	None	None	None	None	NaN	None	None	NaN	POLYGON ((333967.48 390438.231, 333961.101 390...
1_73271	POLYGON ((334073.913 390420.014, 334030.706 39...	1	92d2d106-2d0a-4005-859f-553a7977c3bb	1.0	[ { "property": "", "dataset": "OpenStreetMap"...	NaN	commercial	commercial	NaN	{ "primary": "Oriel Chambers", "common": null,...	...	NaN	None	None	None	None	NaN	None	None	NaN	POLYGON ((334072.247 390432.443, 334042.191 39...
1_73271	POLYGON ((334073.913 390420.014, 334030.706 39...	1	d6049d94-e246-4249-94ee-f0e7c7c3edf1	1.0	[ { "property": "", "dataset": "OpenStreetMap"...	NaN	None	None	NaN	None	...	NaN	None	None	None	None	NaN	None	None	NaN	POLYGON ((334039.203 390482.652, 334011.103 39...
1_73318	POLYGON ((334043.525 390481.046, 334080.22 390...	1	92d2d106-2d0a-4005-859f-553a7977c3bb	1.0	[ { "property": "", "dataset": "OpenStreetMap"...	NaN	commercial	commercial	NaN	{ "primary": "Oriel Chambers", "common": null,...	...	NaN	None	None	None	None	NaN	None	None	NaN	POLYGON ((334072.247 390432.443, 334042.191 39...
1_73318	POLYGON ((334043.525 390481.046, 334080.22 390...	1	d6049d94-e246-4249-94ee-f0e7c7c3edf1	1.0	[ { "property": "", "dataset": "OpenStreetMap"...	NaN	None	None	NaN	None	...	NaN	None	None	None	None	NaN	None	None	NaN	POLYGON ((334039.203 390482.652, 334011.103 39...

5 rows × 24 columns

morpho_nodes["public"].head()

	id	version	sources	subtype	class	names	connectors	routes	subclass_rules	access_restrictions	...	road_flags	speed_limits	width_rules	subclass	geometry	split_from	split_to	length	barrier_geometry	weight
public_id
19002	7b5985b6-c166-49f2-b1a1-7f45b89d94e9_3	1	[ { "property": "", "dataset": "OpenStreetMap"...	road	residential	{ "primary": "Red Cross Street", "common": nul...	[ { "connector_id": "6c0386a2-358f-4035-8f3f-3...	None	None	None	...	None	None	None	None	LINESTRING (334226.058 390165.238, 334226.058 ...	0.581994	1.0	54.567144	LINESTRING (334226.058 390165.238, 334226.058 ...	None
19020	25a21c5f-f422-41f6-bf58-02830ae964c0	1	[ { "property": "", "dataset": "OpenStreetMap"...	road	steps	None	[ { "connector_id": "c4356229-c28c-4d24-a7ca-5...	None	None	None	...	[ { "values": [ "is_covered", "is_indoor" ], "...	None	None	None	LINESTRING (334398.33 390102.797, 334395.759 3...	NaN	NaN	37.723069	LINESTRING (334398.33 390102.797, 334395.759 3...	None
19028	a0c1cc45-6490-4bc2-97b2-177a40a99a79_2	1	[ { "property": "", "dataset": "OpenStreetMap"...	road	footway	None	[ { "connector_id": "17ff8cd1-9d37-49f1-9748-6...	None	None	None	...	None	None	None	None	LINESTRING (334351.049 390179.304, 334350.437 ...	0.953679	1.0	3.380212	None	None
19268	94a11c21-fab8-4b2e-b959-614bc13823f8	1	[ { "property": "", "dataset": "OpenStreetMap"...	road	footway	None	[ { "connector_id": "bb947536-d581-4f5f-a7dd-e...	None	None	None	...	None	None	None	None	LINESTRING (333977.592 390253.605, 333982.088 ...	NaN	NaN	5.360412	LINESTRING (333977.592 390253.605, 333982.088 ...	None
19269	722e3a9a-55c1-47cd-8d0b-65699283adcf	1	[ { "property": "", "dataset": "OpenStreetMap"...	road	footway	None	[ { "connector_id": "b2d24f4e-a0ba-4174-b26b-2...	None	None	None	...	None	None	None	None	LINESTRING (333985.416 390273.514, 333986.64 3...	NaN	NaN	1.319952	LINESTRING (333985.416 390273.514, 333986.64 3...	None

5 rows × 25 columns

morpho_edges[('public', 'connected_to', 'public')].head()

		angle	geometry	weight
from_public_id	to_public_id
19002	19001	2.015969	LINESTRING (334247.285 390182.38, 334198.76 39...	None
	19565	174.500989	LINESTRING (334247.285 390182.38, 334244.186 3...	None
19001	19565	7.514980	LINESTRING (334198.76 390144.738, 334244.186 3...	None
19565	19566	82.043372	LINESTRING (334244.186 390186.688, 334264.683 ...	None
	19575	54.023621	LINESTRING (334244.186 390186.688, 334273.113 ...	None

morpho_edges[('private', 'faced_to', 'public')].head()

		geometry
private_id	public_id
0_73269	19367	LINESTRING (333990.617 390408.84, 333990.894 3...
	19366	LINESTRING (333990.617 390408.84, 333987.115 3...
	19376	LINESTRING (333990.617 390408.84, 333994.021 3...
	19370	LINESTRING (333990.617 390408.84, 334001.27 39...
	19377	LINESTRING (333990.617 390408.84, 334015.167 3...

morpho_edges[('private', 'touched_to', 'private')].head()

		enclosure_index	geometry
from_private_id	to_private_id
1_73271	1_73318	1	LINESTRING (334020.81 390464.168, 334054.803 3...
6_93387	6_93388	6	LINESTRING (334707.371 390705.046, 334710.834 ...
6_93388	6_93389	6	LINESTRING (334710.834 390762.232, 334742.808 ...
13_93250	13_93403	13	LINESTRING (334754.659 390295.189, 334774.56 3...
	13_93426	13	LINESTRING (334754.659 390295.189, 334778.092 ...

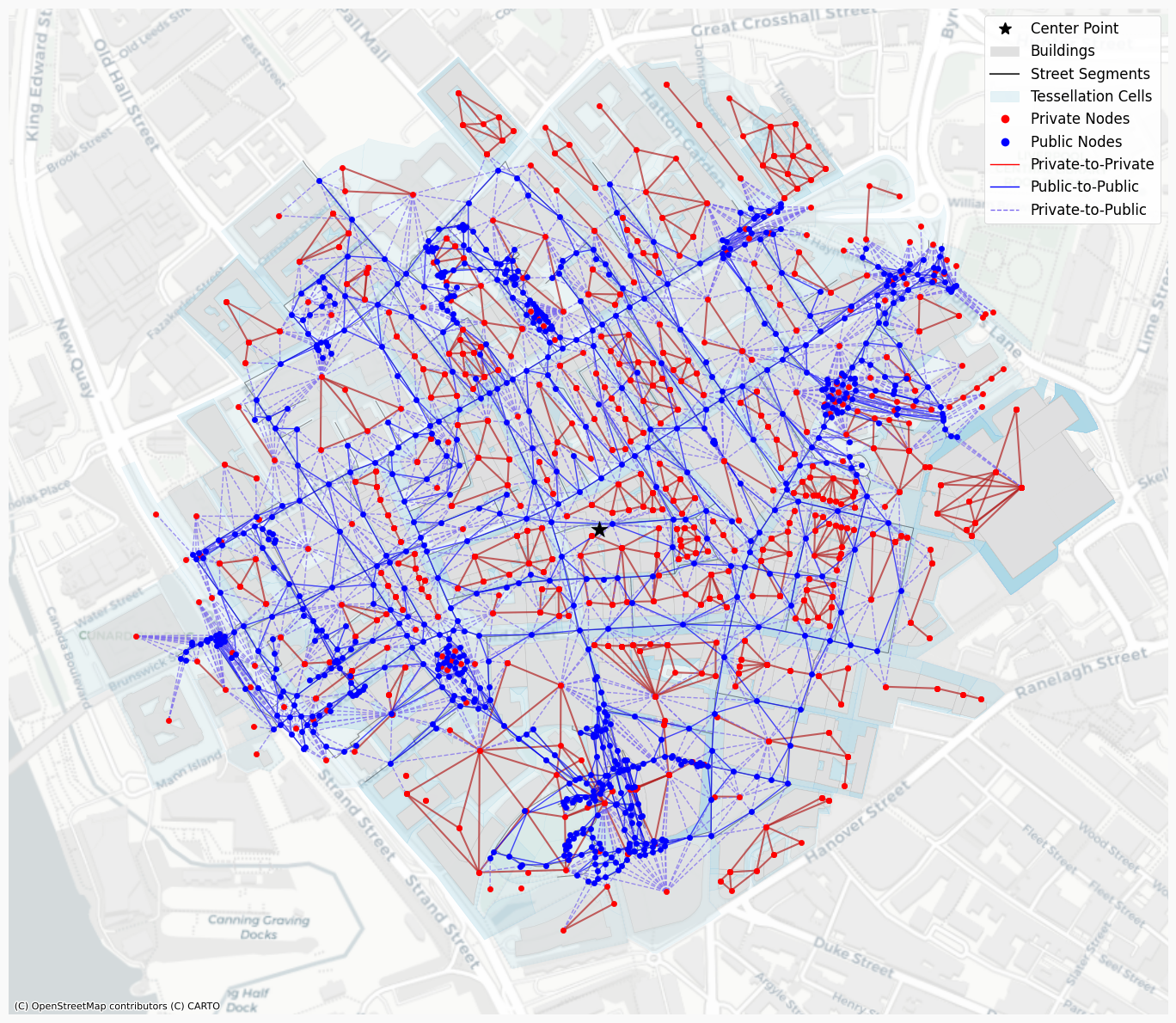

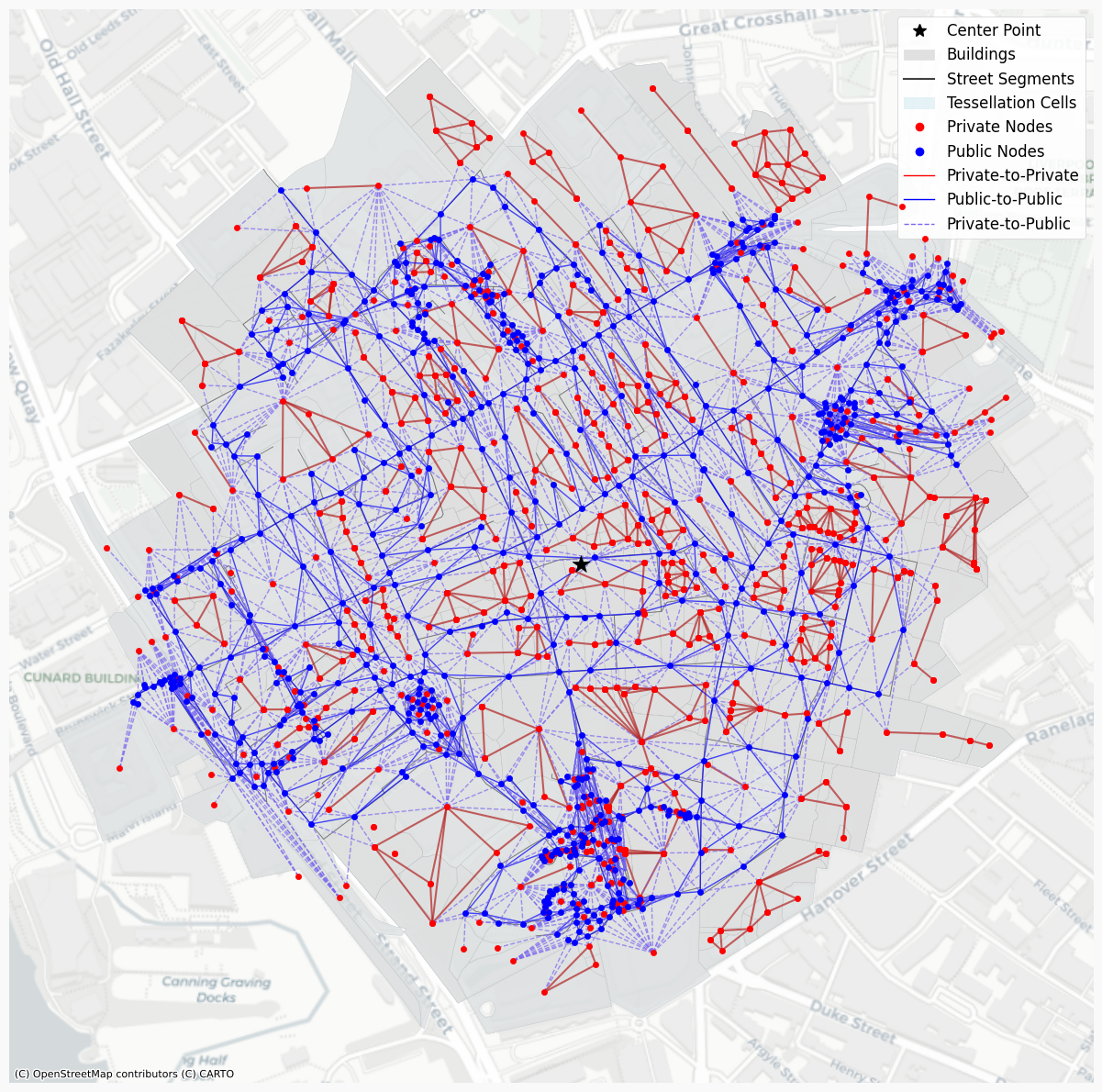

# Set up the figure with a nice size and background
fig, ax = plt.subplots(figsize=(14, 12), facecolor='#f9f9f9')

# Plot central point
ax.scatter(center_point.x, center_point.y, color='black', marker='*', s=200, zorder=5, label='Center Point')

# Plot background elements with improved styling
morpho_nodes["private"].plot(ax=ax, color='#ADD8E6', edgecolor='#87CEEB', linewidth=0.2, alpha=0.2)
morpho_nodes["private"]["building_geometry"].plot(ax=ax, color='#e0e0e0', edgecolor='#c0c0c0', linewidth=0.3, alpha=0.7)
morpho_nodes["public"].plot(ax=ax, color='#404040', linewidth=0.7, alpha=0.6)

# Plot the three network types with distinctive styles
morpho_edges[('private', 'touched_to', 'private')].plot(ax=ax, color='#B22222', linewidth=1.5, alpha=0.7)
morpho_edges[('public', 'connected_to', 'public')].plot(ax=ax, color='#0000FF', linewidth=1.0, alpha=0.7)
morpho_edges[('private', 'faced_to', 'public')].plot(ax=ax, color='#7B68EE', linewidth=1.0, alpha=0.7, linestyle='--')

# Add nodes: private nodes from tessellation centroids (red) and public nodes as midpoints of segments (blue)
private_nodes = morpho_nodes["private"].centroid
ax.scatter(private_nodes.x, private_nodes.y, color='red', s=20, zorder=10, label='Private Spaces')

public_nodes = morpho_nodes["public"].geometry.apply(lambda geom: geom.interpolate(0.5, normalized=True))
ax.scatter(public_nodes.x, public_nodes.y, color='blue', s=20, zorder=10, label='Public Spaces')

# Create a legend with clear labels
legend_elements = [
    plt.Line2D([0], [0], color='black', marker='*', linestyle='None', markersize=10, label='Center Point'),
    plt.Rectangle((0, 0), 1, 1, color='#e0e0e0', label='Buildings'),
    plt.Line2D([0], [0], color='#404040', lw=1.5, label='Street Segments'),
    plt.Rectangle((0, 0), 1, 1, color='#ADD8E6', alpha=0.3, label='Tessellation Cells'),
    plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='red', markersize=8, linestyle='None', label='Private Nodes'),
    plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='blue', markersize=8, linestyle='None', label='Public Nodes'),
    plt.Line2D([0], [0], color='red', lw=1, label='Private-to-Private'),
    plt.Line2D([0], [0], color='blue', lw=1, label='Public-to-Public'),
    plt.Line2D([0], [0], color='#7B68EE', lw=1, linestyle='--', label='Private-to-Public'),
]

# Position the legend inside the plot (upper right)
ax.legend(handles=legend_elements, loc='upper right',
frameon=True, facecolor='white', framealpha=0.9, fontsize=12)

# Add title and remove axes
ax.set_axis_off()

# Add basemap from Stamen Terrain below everything else
cx.add_basemap(ax, crs='EPSG:27700', source=cx.providers.CartoDB.Positron, alpha=1)

plt.tight_layout()
plt.show()

6. Converting to Graph Representations for Machine Learning

city2graph provides seamless conversion between spatial data and graph formats optimized for machine learning. We’ll demonstrate conversion to PyTorch Geometric, enabling advanced graph neural network applications for urban analysis.

Graph Format Support:

• NetworkX: For traditional graph analysis and algorithms

• PyTorch Geometric: For deep learning on graphs

• GeoDataFrames: For spatial analysis and visualization

This interoperability allows researchers to leverage the best tools for each analysis task.

# Check for PyTorch Geometric availability
import torch

try:
    import torch_geometric
    HAS_TORCH_GEOMETRIC = True
    print("✅ PyTorch Geometric successfully imported")
    print(f"   PyTorch version: {torch.__version__}")
    print(f"   PyTorch Geometric version: {torch_geometric.__version__}")
    print("🚀 Ready for graph representation learning!")
except ImportError:
    HAS_TORCH_GEOMETRIC = False
    print("⚠️  PyTorch Geometric not installed")
    print("   Install with: pip install torch-geometric")
    print("   Graph functionality will be limited to NetworkX")

✅ PyTorch Geometric successfully imported
   PyTorch version: 2.7.1
   PyTorch Geometric version: 2.6.1
🚀 Ready for graph representation learning!

6.1 Homogeneous Graph: Private Space Network

Let’s start with a homogeneous graph focusing on private spaces (tessellation cells) and their adjacency relationships. This represents the spatial structure of plots and parcels in the urban environment.

# Compute spatial features for private spaces (tessellation cells)
morpho_nodes["private"]["area"] = morpho_nodes["private"].geometry.area
morpho_nodes["private"]["perimeter"] = morpho_nodes["private"].geometry.length
morpho_nodes["private"]["compactness"] = (
    4 * np.pi * morpho_nodes["private"]["area"] / (morpho_nodes["private"]["perimeter"] ** 2)
)

print("📊 Computed spatial features for private spaces:")
feature_stats = morpho_nodes["private"][['area', 'perimeter', 'compactness']].describe()
print(feature_stats.round(2))

# Set proper index names for graph conversion
morpho_nodes["private"].index.name = "tess_id"
morpho_edges[('private', 'touched_to', 'private')].index.names = ['from_private_id', 'to_private_id']

print("\n✅ Features computed and indices configured")

📊 Computed spatial features for private spaces:
           area  perimeter  compactness
count   1342.00    1342.00      1342.00
mean    1387.59     141.14         0.61
std     2800.88     110.93         0.15
min        0.00       0.00         0.03
25%      285.98      75.46         0.53
50%      564.02     107.44         0.64
75%     1294.72     162.18         0.73
max    23421.96     791.12         0.99

✅ Features computed and indices configured

if HAS_TORCH_GEOMETRIC:
    # Create homogeneous graph of private spaces
    private_graph = city2graph.gdf_to_pyg(
        nodes=morpho_nodes["private"],
        edges=morpho_edges[('private', 'touched_to', 'private')],
        node_feature_cols=['area', 'perimeter', 'compactness'],
        edge_feature_cols=None
    )

    print("🎯 Created homogeneous graph:")
    print(f"   • Nodes: {private_graph.num_nodes:,}")
    print(f"   • Edges: {private_graph.num_edges:,}")
    print(f"   • Node features: {private_graph.x.shape[1]} dimensions")
    print(f"   • Feature tensor shape: {private_graph.x.shape}")
    print("\n✅ Ready for graph neural network training!")

else:
    print("⚠️ Skipping PyTorch Geometric conversion (not installed)")
    private_graph = None

🎯 Created homogeneous graph:
   • Nodes: 1,342
   • Edges: 625
   • Node features: 3 dimensions
   • Feature tensor shape: torch.Size([1342, 3])

✅ Ready for graph neural network training!

Test Graph Conversions

Let’s test the round-trip conversions between different graph formats to ensure data integrity:

6.2 Heterogeneous Graph: Complete Morphological Graph

Now let’s create a heterogeneous graph that captures the full morphological graph with all node and edge types. This provides the complete representation for advanced urban analysis.

# Define center point for the analysis area (Liverpool city centre)
center_point = gpd.GeoSeries([Point(-2.9879004, 53.4062724)], crs='EPSG:4326').to_crs(epsg=27700)

# Create the morphological graph
print("🏗️  Creating morphological graph...")
morpho_nodes, morpho_edges = city2graph.morphological_graph(
    buildings_gdf=buildings_gdf,
    segments_gdf=segments_gdf,
    center_point=center_point,
    distance=500,                    # Analysis radius in meters
    clipping_buffer=300,            # Buffer for edge effects
    primary_barrier_col='barrier_geometry',
    contiguity="queen",             # Adjacency rule for tessellation
    keep_buildings=True,            # Preserve building geometries
)

print("✅ Morphological graph created successfully!")
print(f"📊 Network summary:")
print(f"   • Node types: {list(morpho_nodes.keys())}")
print(f"   • Edge types: {list(morpho_edges.keys())}")
print(f"   • Private spaces: {len(morpho_nodes['private']):,}")
print(f"   • Public spaces: {len(morpho_nodes['public']):,}")

for edge_type, edge_gdf in morpho_edges.items():
    print(f"   • {edge_type}: {len(edge_gdf):,} connections")

Removed 8 invalid geometries

🏗️  Creating morphological graph...

/Users/yutasato/Projects/Liverpool/city2graph/.venv/lib/python3.13/site-packages/libpysal/weights/contiguity.py:347: UserWarning: The weights matrix is not fully connected:
 There are 3 disconnected components.
  W.__init__(self, neighbors, ids=ids, **kw)

✅ Morphological graph created successfully!
📊 Network summary:
   • Node types: ['private', 'public']
   • Edge types: [('private', 'touched_to', 'private'), ('public', 'connected_to', 'public'), ('private', 'faced_to', 'public')]
   • Private spaces: 1,342
   • Public spaces: 781
   • ('private', 'touched_to', 'private'): 625 connections
   • ('public', 'connected_to', 'public'): 1,432 connections
   • ('private', 'faced_to', 'public'): 2,448 connections

# Compute features for public spaces (street segments)
morpho_nodes["public"]["length"] = morpho_nodes["public"].geometry.length

print("📊 Computed spatial features for public spaces:")
print(f"   • Street length statistics:")
length_stats = morpho_nodes["public"]["length"].describe()
print(f"     - Mean: {length_stats['mean']:.1f}m")
print(f"     - Median: {length_stats['50%']:.1f}m")
print(f"     - Range: {length_stats['min']:.1f}m - {length_stats['max']:.1f}m")

print(f"\n✅ Features ready for heterogeneous graph creation")

📊 Computed spatial features for public spaces:
   • Street length statistics:
     - Mean: 24.5m
     - Median: 14.7m
     - Range: 0.8m - 153.9m

✅ Features ready for heterogeneous graph creation

if HAS_TORCH_GEOMETRIC:
    # Create heterogeneous graph with all morphological relationships
    hetero_graph = city2graph.gdf_to_pyg(
        morpho_nodes,
        morpho_edges,
        node_feature_cols={
            "private": ['area', 'perimeter', 'compactness'],
            "public": ['length']
        }
    )

    print("🌐 Created heterogeneous morphological graph:")
    print(f"   📊 Node types and counts:")
    for node_type in hetero_graph.node_types:
        num_nodes = hetero_graph[node_type].x.shape[0]
        num_features = hetero_graph[node_type].x.shape[1]
        print(f"     • {node_type}: {num_nodes:,} nodes, {num_features} features")

    print(f"   🔗 Edge types and counts:")
    for edge_type in hetero_graph.edge_types:
        num_edges = hetero_graph[edge_type].edge_index.shape[1]
        print(f"     • {edge_type}: {num_edges:,} edges")

    print("\n✅ Complete morphological graph ready for heterogeneous GNN training!")

else:
    print("⚠️ Skipping PyTorch Geometric conversion (not installed)")
    hetero_graph = None

🌐 Created heterogeneous morphological graph:
   📊 Node types and counts:
     • private: 1,342 nodes, 0 features
     • public: 781 nodes, 1 features
   🔗 Edge types and counts:
     • ('private', 'touched_to', 'private'): 625 edges
     • ('public', 'connected_to', 'public'): 1,432 edges
     • ('private', 'faced_to', 'public'): 2,448 edges

✅ Complete morphological graph ready for heterogeneous GNN training!

hetero_graph

HeteroData(
  crs=EPSG:27700,
  graph_metadata=<city2graph.utils.GraphMetadata object at 0x3068a1130>,
  private={
    x=[1342, 0],
    pos=[1342, 2],
  },
  public={
    x=[781, 1],
    pos=[781, 2],
  },
  (private, touched_to, private)={
    edge_index=[2, 625],
    edge_attr=[625, 0],
  },
  (public, connected_to, public)={
    edge_index=[2, 1432],
    edge_attr=[1432, 0],
  },
  (private, faced_to, public)={
    edge_index=[2, 2448],
    edge_attr=[2448, 0],
  }
)

6.3 Using NetworkX

city2graph provides seamless conversion to NetworkX for traditional graph analysis and algorithms. This enables access to the rich ecosystem of graph analysis tools.

morpho_graph = city2graph.gdf_to_pyg(morpho_nodes,
                                     morpho_edges,
                                     node_feature_cols={"private": ['area', 'perimeter', 'compactness'],
                                                        "public": ['length']},)

# Convert morphological graph to NetworkX for traditional graph analysis
G_morpho = city2graph.gdf_to_nx(morpho_nodes, morpho_edges)

print("🔗 Converted to NetworkX:")
print(f"   • Total nodes: {G_morpho.number_of_nodes():,}")
print(f"   • Total edges: {G_morpho.number_of_edges():,}")
print(f"   • Graph type: {'Directed' if G_morpho.is_directed() else 'Undirected'}")

# Check if it's a heterogeneous graph
has_node_types = any('node_type' in data for _, data in G_morpho.nodes(data=True))
print(f"   • Heterogeneous: {'Yes' if has_node_types else 'No'}")

if has_node_types:
    # Count nodes by type
    from collections import Counter
    node_types = [data.get('node_type', 'unknown') for _, data in G_morpho.nodes(data=True)]
    type_counts = Counter(node_types)
    print(f"   • Node type distribution:")
    for node_type, count in type_counts.items():
        print(f"     - {node_type}: {count:,}")

print("\n✅ Ready for NetworkX graph analysis algorithms!")

🔗 Converted to NetworkX:
   • Total nodes: 2,123
   • Total edges: 4,505
   • Graph type: Undirected
   • Heterogeneous: Yes
   • Node type distribution:
     - private: 1,342
     - public: 781

✅ Ready for NetworkX graph analysis algorithms!

7. OpenStreetMap

As a reference, you can execute the same process using OpenStreetMap dataset, extracted by osmnx.

import osmnx as ox

# Download and create a street network graph for Liverpool, UK
G_osmnx = ox.graph_from_place("Liverpool, UK", network_type="all")

print(f"✅ OSMnx graph created for Liverpool, UK")
print(f"   • Nodes: {len(G_osmnx.nodes):,}")
print(f"   • Edges: {len(G_osmnx.edges):,}")

✅ OSMnx graph created for Liverpool, UK
   • Nodes: 44,624
   • Edges: 113,686

# Download POIs (amenities, shops, etc.) in Liverpool, UK
tags = {"building": True}
osm_buildings = ox.features_from_place("Liverpool, UK", tags)

print(f"✅ Retrieved {len(osm_buildings):,} buildings from OSMnx")
osm_buildings.head()

✅ Retrieved 75,227 buildings from OSMnx

		geometry	building	building:material	building:use	name	emergency	addr:street	shop	website	addr:city	...	naptan:PlusbusZoneRef	naptan:ShortCommonName	naptan:Street	naptan:verified	shelter	type	ref:edubase:group	school:trust:name	school:trust:type	manager
element	id
node	130190976	POINT (-2.92799 53.37127)	yes	brick	religious	Saint Anne's Parish Hall - 1902	NaN	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	252558860	POINT (-2.91785 53.396)	residential	NaN	NaN	Bradbury House	NaN	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	299317179	POINT (-2.97904 53.39175)	yes	NaN	NaN	Toxteth Ambulance Station	ambulance_station	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	1563152870	POINT (-2.91166 53.41248)	manufacture	NaN	NaN	Tom Williams Cake Factory	NaN	Broad Green Road	pastry	http://www.cakefactory.co.uk/	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	1669223582	POINT (-2.96855 53.40601)	yes	NaN	NaN	ALL (Active Learning Laboratory)	NaN	NaN	NaN	NaN	NaN	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

5 rows × 369 columns

If you want to directly convert the nx.MultiGraph into torch_geometric.data.Data,

osm_data = city2graph.nx_to_pyg(G_osmnx)

osm_data

Data(x=[44624, 0], edge_index=[2, 113686], edge_attr=[113686, 0], pos=[44624, 2], crs=epsg:4326, graph_metadata=<city2graph.utils.GraphMetadata object at 0x3061ed910>)

Or you can convert it into GeoDataFrame that is compatible to other functions in city2graph,

osm_street_nodes, osm_street_edges =city2graph.nx_to_gdf(G_osmnx)

osm_street_nodes.head()

	y	x	street_count	geometry	highway	ref	junction
324206	53.407123	-2.884331	3	POINT (-2.88433 53.40712)	NaN	NaN	NaN
324209	53.405943	-2.896571	3	POINT (-2.89657 53.40594)	NaN	NaN	NaN
324210	53.406113	-2.896688	3	POINT (-2.89669 53.40611)	motorway_junction	4	NaN
324216	53.406488	-2.899987	3	POINT (-2.89999 53.40649)	NaN	NaN	NaN
324217	53.407391	-2.902198	3	POINT (-2.9022 53.40739)	NaN	NaN	NaN

osm_street_edges.head()

			osmid	highway	lanes	maxspeed	oneway	ref	reversed	length	bridge	geometry	weight	name	junction	service	access	width	est_width	tunnel
324206	324209	0	[28181793, 627409058, 546631471, 1155945617, 1...	motorway	3	[70 mph, 40 mph, 50 mph]	True	M62	False	823.913652	yes	LINESTRING (-2.88433 53.40712, -2.88494 53.407...	None	NaN	NaN	NaN	NaN	NaN	NaN	NaN
324209	3467956864	0	15215646	trunk	3	40 mph	True	A5080	False	52.584979	NaN	LINESTRING (-2.89657 53.40594, -2.89678 53.405...	None	Bowring Park Road	NaN	NaN	NaN	NaN	NaN	NaN
324210	11385898804	0	15215652	primary	NaN	40 mph	True	A5080	False	32.304470	NaN	LINESTRING (-2.89669 53.40611, -2.89629 53.406...	None	Bowring Park Road	NaN	NaN	NaN	NaN	NaN	NaN
324216	21026685	0	4002276	trunk	3	40 mph	True	A5080	False	87.887476	NaN	LINESTRING (-2.89999 53.40649, -2.90028 53.406...	None	Edge Lane Drive	NaN	NaN	NaN	NaN	NaN	NaN
	21026680	0	4002284	trunk_link	NaN	40 mph	True	NaN	False	61.909425	NaN	LINESTRING (-2.89999 53.40649, -2.90029 53.406...	None	NaN	NaN	NaN	NaN	NaN	NaN	NaN

To constrcut a morphological graph,

osm_buildings = osm_buildings.to_crs(epsg=27700)
osm_street_edges = osm_street_edges.to_crs(epsg=27700)

# Exclude rows with point geometries from osm_buildings
osm_buildings = osm_buildings[osm_buildings.geometry.type != "Point"]

# Define center point for the analysis area (Liverpool city centre)
center_point = gpd.GeoSeries([Point(-2.9879004, 53.4062724)], crs='EPSG:4326').to_crs(epsg=27700)

# Create the morphological graph
print("🏗️  Creating morphological graph...")
morpho_nodes, morpho_edges = city2graph.morphological_graph(
    buildings_gdf=osm_buildings,
    segments_gdf=osm_street_edges,
    center_point=center_point,
    distance=500,                    # Analysis radius in meters
    clipping_buffer=300,            # Buffer for edge effects
    primary_barrier_col='barrier_geometry',
    contiguity="queen",             # Adjacency rule for tessellation
    keep_buildings=True,            # Preserve building geometries
)

print("✅ Morphological graph created successfully!")
print(f"📊 Network summary:")
print(f"   • Node types: {list(morpho_nodes.keys())}")
print(f"   • Edge types: {list(morpho_edges.keys())}")
print(f"   • Private spaces: {len(morpho_nodes['private']):,}")
print(f"   • Public spaces: {len(morpho_nodes['public']):,}")

for edge_type, edge_gdf in morpho_edges.items():
    print(f"   • {edge_type}: {len(edge_gdf):,} connections")

🏗️  Creating morphological graph...

/Users/yutasato/Projects/Liverpool/city2graph/.venv/lib/python3.13/site-packages/libpysal/weights/contiguity.py:347: UserWarning: The weights matrix is not fully connected:
 There are 3 disconnected components.
  W.__init__(self, neighbors, ids=ids, **kw)

✅ Morphological graph created successfully!
📊 Network summary:
   • Node types: ['private', 'public']
   • Edge types: [('private', 'touched_to', 'private'), ('public', 'connected_to', 'public'), ('private', 'faced_to', 'public')]
   • Private spaces: 1,488
   • Public spaces: 645
   • ('private', 'touched_to', 'private'): 571 connections
   • ('public', 'connected_to', 'public'): 1,280 connections
   • ('private', 'faced_to', 'public'): 3,238 connections

# Set up the figure with a nice size and background
fig, ax = plt.subplots(figsize=(14, 12), facecolor='#f9f9f9')

# Plot central point
ax.scatter(center_point.x, center_point.y, color='black', marker='*', s=200, zorder=5, label='Center Point')

# Plot background elements with improved styling
morpho_nodes["private"].plot(ax=ax, color='#ADD8E6', edgecolor='#87CEEB', linewidth=0.2, alpha=0.2)
morpho_nodes["private"].plot(ax=ax, color='#e0e0e0', edgecolor='#c0c0c0', linewidth=0.3, alpha=0.7)
morpho_nodes["public"].plot(ax=ax, color='#404040', linewidth=0.7, alpha=0.6)

# Plot the three network types with distinctive styles
morpho_edges[('private', 'touched_to', 'private')].plot(ax=ax, color='#B22222', linewidth=1.5, alpha=0.7)
morpho_edges[('public', 'connected_to', 'public')].plot(ax=ax, color='#0000FF', linewidth=1.0, alpha=0.7)
morpho_edges[('private', 'faced_to', 'public')].plot(ax=ax, color='#7B68EE', linewidth=1.0, alpha=0.7, linestyle='--')

# Add nodes: private nodes from tessellation centroids (red) and public nodes as midpoints of segments (blue)
private_nodes = morpho_nodes["private"].centroid
ax.scatter(private_nodes.x, private_nodes.y, color='red', s=20, zorder=10, label='Private Spaces')

public_nodes = morpho_nodes["public"].geometry.apply(lambda geom: geom.interpolate(0.5, normalized=True))
ax.scatter(public_nodes.x, public_nodes.y, color='blue', s=20, zorder=10, label='Public Spaces')

# Create a legend with clear labels
legend_elements = [
    plt.Line2D([0], [0], color='black', marker='*', linestyle='None', markersize=10, label='Center Point'),
    plt.Rectangle((0, 0), 1, 1, color='#e0e0e0', label='Buildings'),
    plt.Line2D([0], [0], color='#404040', lw=1.5, label='Street Segments'),
    plt.Rectangle((0, 0), 1, 1, color='#ADD8E6', alpha=0.3, label='Tessellation Cells'),
    plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='red', markersize=8, linestyle='None', label='Private Nodes'),
    plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='blue', markersize=8, linestyle='None', label='Public Nodes'),
    plt.Line2D([0], [0], color='red', lw=1, label='Private-to-Private'),
    plt.Line2D([0], [0], color='blue', lw=1, label='Public-to-Public'),
    plt.Line2D([0], [0], color='#7B68EE', lw=1, linestyle='--', label='Private-to-Public'),
]

# Position the legend inside the plot (upper right)
ax.legend(handles=legend_elements, loc='upper right',
frameon=True, facecolor='white', framealpha=0.9, fontsize=12)

# Add title and remove axes
ax.set_axis_off()

# Add basemap from Stamen Terrain below everything else
cx.add_basemap(ax, crs='EPSG:27700', source=cx.providers.CartoDB.Positron, alpha=1)

plt.tight_layout()
plt.show()

osm_hetero_data = city2graph.gdf_to_pyg(morpho_nodes, morpho_edges)

Removed 2 invalid geometries

osm_hetero_data

HeteroData(
  crs=EPSG:27700,
  graph_metadata=<city2graph.utils.GraphMetadata object at 0x179a577d0>,
  private={
    x=[1488, 0],
    pos=[1488, 2],
  },
  public={
    x=[645, 0],
    pos=[645, 2],
  },
  (private, touched_to, private)={
    edge_index=[2, 569],
    edge_attr=[569, 0],
  },
  (public, connected_to, public)={
    edge_index=[2, 1280],
    edge_attr=[1280, 0],
  },
  (private, faced_to, public)={
    edge_index=[2, 3238],
    edge_attr=[3238, 0],
  }
)

8. Summary

Congratulations! You’ve successfully created morphological graphs from Overture Maps data using city2graph. This workflow provides:

What We’ve Accomplished:

Data Integration: Combined building footprints and street networks from Overture Maps

Morphological Analysis: Created tessellations representing private urban spaces

Network Extraction: Identified three types of spatial relationships

Graph Conversion: Generated both homogeneous and heterogeneous graph representations

Machine Learning Ready: Prepared data for PyTorch Geometric and NetworkX analysis

Applications Enabled:

• Urban Connectivity Analysis: Study how private and public spaces connect

• Accessibility Research: Measure spatial accessibility across urban areas

• Graph Neural Networks: Apply deep learning to urban form analysis

• Comparative Studies: Analyze different cities using standardized representations

• Planning Support: Inform urban design with data-driven insights

Next Steps:

1. Add Urban Attributes: Enrich nodes with POI data, demographics, or land use

2. Multi-Scale Analysis: Apply to different spatial scales (neighborhood to metropolitan)

3. Temporal Studies: Track urban evolution over time

4. Machine Learning: Train GNNs for prediction tasks (property values, accessibility, etc.)

5. Cross-City Comparison: Apply the same workflow to other cities

The morphological graph provides a foundation for sophisticated urban analysis that bridges traditional GIS approaches with modern graph machine learning techniques.

if HAS_TORCH_GEOMETRIC:
    import os
    import torch
    from torch_geometric.data import InMemoryDataset

    class MorphoGraphDataset(InMemoryDataset):
        """A PyTorch Geometric dataset for morphological graphs."""

        def __init__(self, root, transform=None, pre_transform=None):
            super().__init__(root, transform, pre_transform)
            if os.path.exists(self.processed_paths[0]):
                self.data, self.slices = torch.load(self.processed_paths[0], weights_only=False)

        @property
        def raw_file_names(self):
            return []

        @property
        def processed_file_names(self):
            return ['morpho_graph.pt']

        def download(self):
            # No download needed
            pass

        def process(self):
            # Use the existing morpho_graph as our single graph sample
            data_list = [hetero_graph]
            data, slices = self.collate(data_list)
            torch.save((data, slices), self.processed_paths[0])

    # Create and save the dataset
    os.makedirs('./morpho_graph_dataset/processed', exist_ok=True)

    try:
        dataset = MorphoGraphDataset(root='./morpho_graph_dataset')
        print(f"💾 Dataset created and saved with {len(dataset)} graph(s)")
        print(f"   📁 Saved to: ./morpho_graph_dataset/")
        print("✅ Ready for future machine learning experiments!")
    except Exception as e:
        print(f"ℹ️  Dataset creation skipped: {e}")

else:
    print("ℹ️  Dataset creation skipped (PyTorch Geometric not available or no hetero_graph)")

print("\n🎉 Morphological graph analysis complete!")

💾 Dataset created and saved with 1 graph(s)
   📁 Saved to: ./morpho_graph_dataset/
✅ Ready for future machine learning experiments!

🎉 Morphological graph analysis complete!

8. Additional Resources

Documentation and Examples:

• city2graph Documentation: Full API reference and tutorials

• Overture Maps: Open geospatial data platform

• PyTorch Geometric: Graph deep learning framework

Key Functions Used:

• city2graph.load_overture_data(): Download data from Overture Maps

• city2graph.process_overture_segments(): Clean and process street networks

• city2graph.morphological_graph(): Create morphological graphs

• city2graph.gdf_to_pyg(): Convert to PyTorch Geometric format

• city2graph.gdf_to_nx(): Convert to NetworkX format
